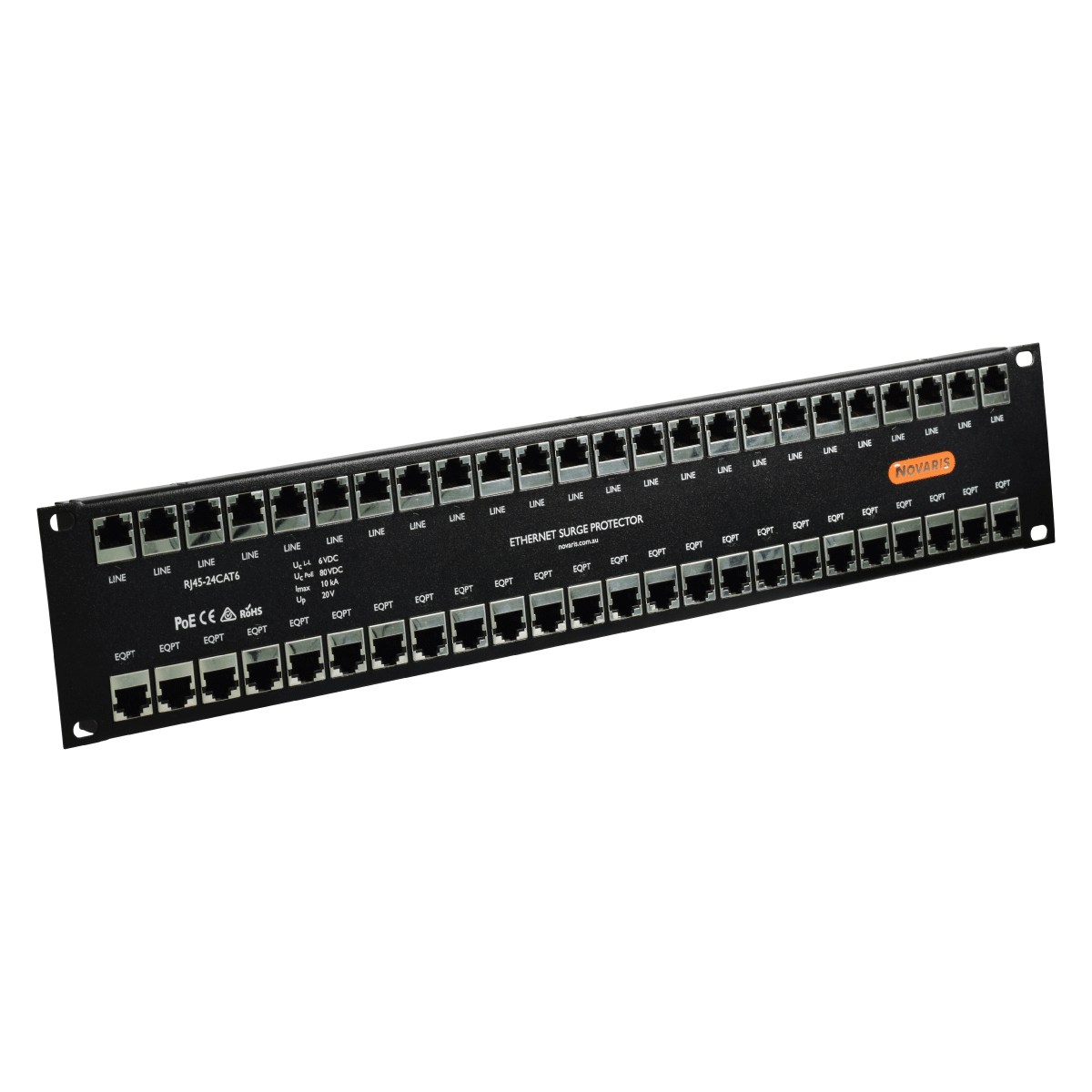

The Novaris RJ45 network protection products are designed for twisted pair Ethernet systems. They are suited for up to Gigabit Ethernet and PoE applications to 160W and come in standard 19 inch equipment rack format.
The Novaris RJ45 network protection products are designed for twisted pair Ethernet systems. They are suited for up to Gigabit Ethernet and PoE applications to 160W and come in standard 19 inch equipment rack format.
Application Notes Download
| Specifications | RJ45-8CAT6 | RJ45-16CAT6 | RJ45-24CAT6 | |||
|---|---|---|---|---|---|---|
| Maximum continuous voltage (DC) | U꜀ | 6V | ||||
| Maximum continuous voltage (AC) | U꜀ | 4V | ||||
| Maximum discharge current (8/20μs) | Iₘₐₓ | 5kA per line (10kA common mode) | ||||
| Maximum impulse current (10/350μs) | Iᵢₘₚ | 1kA per line (2kA common mode) | ||||
| Impulse durability | C2 8/20μs 1.5 kA – D1 10/350μs 0.5kA | |||||
| Maximum load current | IL | 1A | ||||
| L-L Voltage protection level @ 1 kV/μs | Uₚ | 20V | ||||
| L-PE Voltage protection level @ 1 kV/μs | Uₚ | 350V | ||||
| Line resistance | 0.1 Ω | |||||
| Mounting method | 2RU Rack mount | |||||
| No of protected network circuits | 8 | 16 | 24 | |||
| Dimensions | 📐 | W 483mm x H 88mm x D 20mm | ||||
| Weight | 📦 | 1.8kg | 1.9kg | 2kg | ||
| Product Datasheet | RJ45-8CAT6 | RJ45-16CAT6 | RJ45-24CAT6 | |||
| Installation Guide | RJ45-8CAT6 | RJ45-16CAT6 | RJ45-24CAT6 | |||
