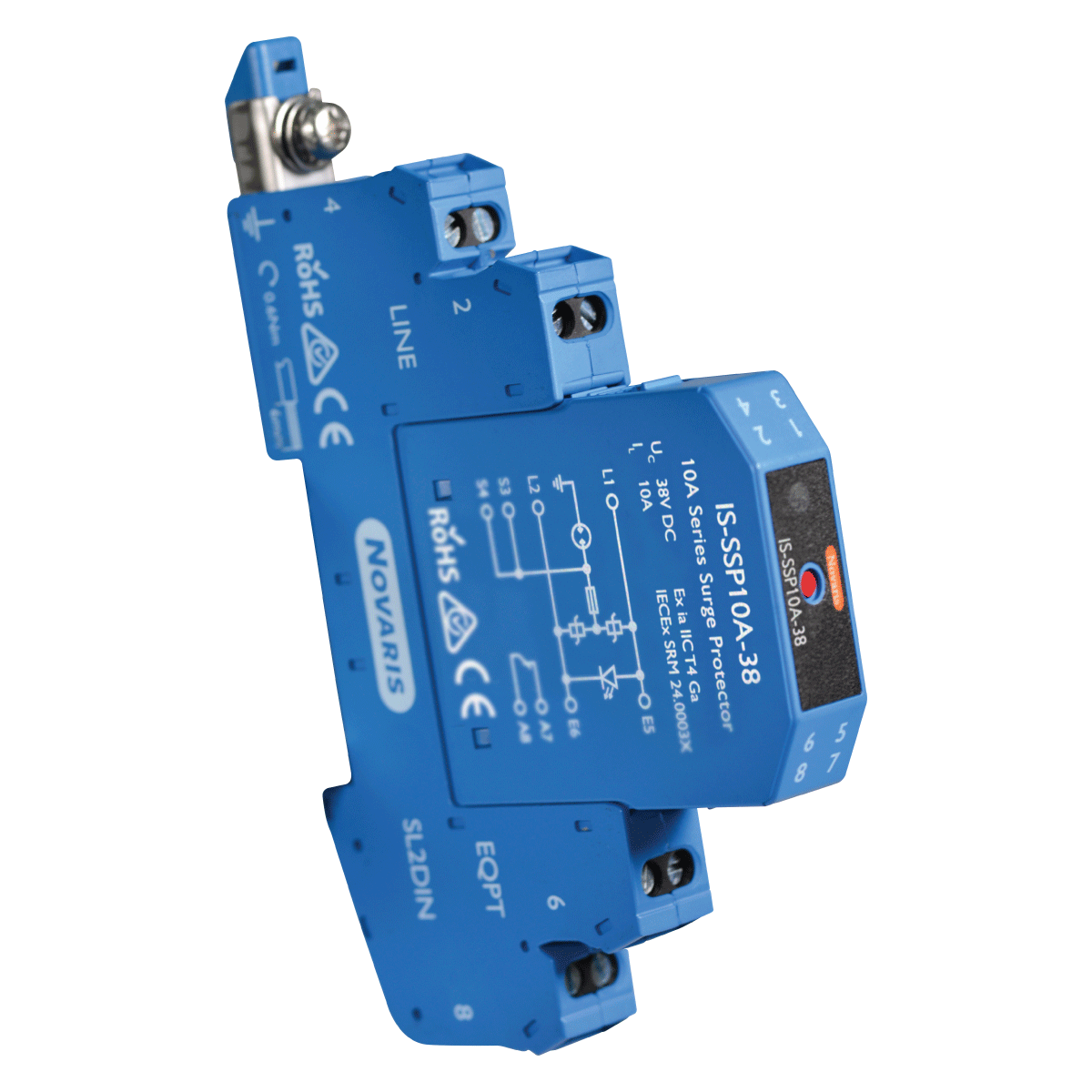

Ten Amp Hazardous Area Series Surge Protectors

Product Line : IS-SSP10A

Ten Amp Hazardous Area Series Surge Protectors

For DC and AC power up to 10A, no follow current Ex ia

Novaris IS-SSP10A series surge protectors complement the IS-SL2/4 range for applications with load currents up to 10A. These may include power supplies, digital outputs and other low voltage systems. This product is free from AC follow on current under all conditions and may safely be used to protect battery backed power supplies. These products are certified Ex ia for use in hazardous areas.

  • 10A load current
  • Visual health indicator
  • Replaceable cartridge
  • 12mm width
  • No follow on current
  • Zero earth leakage
SpecificationsIS-SSP10A-14IS-SSP10A-26IS-SSP10A-38IS-SSP10A-65
Maximum continuous voltage (DC)U꜀14V26V38V65V
Maximum continuous voltage (AC)U꜀11V20V30V50V
Maximum discharge current (8/20μs)Iₘₐₓ10 kA per line (20 kA common mode)
Impulse durabilityC2 8/20μs 10kA
Maximum load current

IL

10A10A10A10A
L-L Voltage protection level @ 1 kV/μsUₚ45V65V110V135V
L-PE Voltage protection level @ 1 kV/μsUₚ560V560V560V560V
Line resistance0.02 Ω0.02 Ω0.02 Ω0.02 Ω
Dimensions📐W 12mm X H 110mm X D71mm
Weight📦70g
Product DatasheetPDFIS-SSP10A-14IS-SSP10A-26IS-SSP10A-38IS-SSP10A-65
