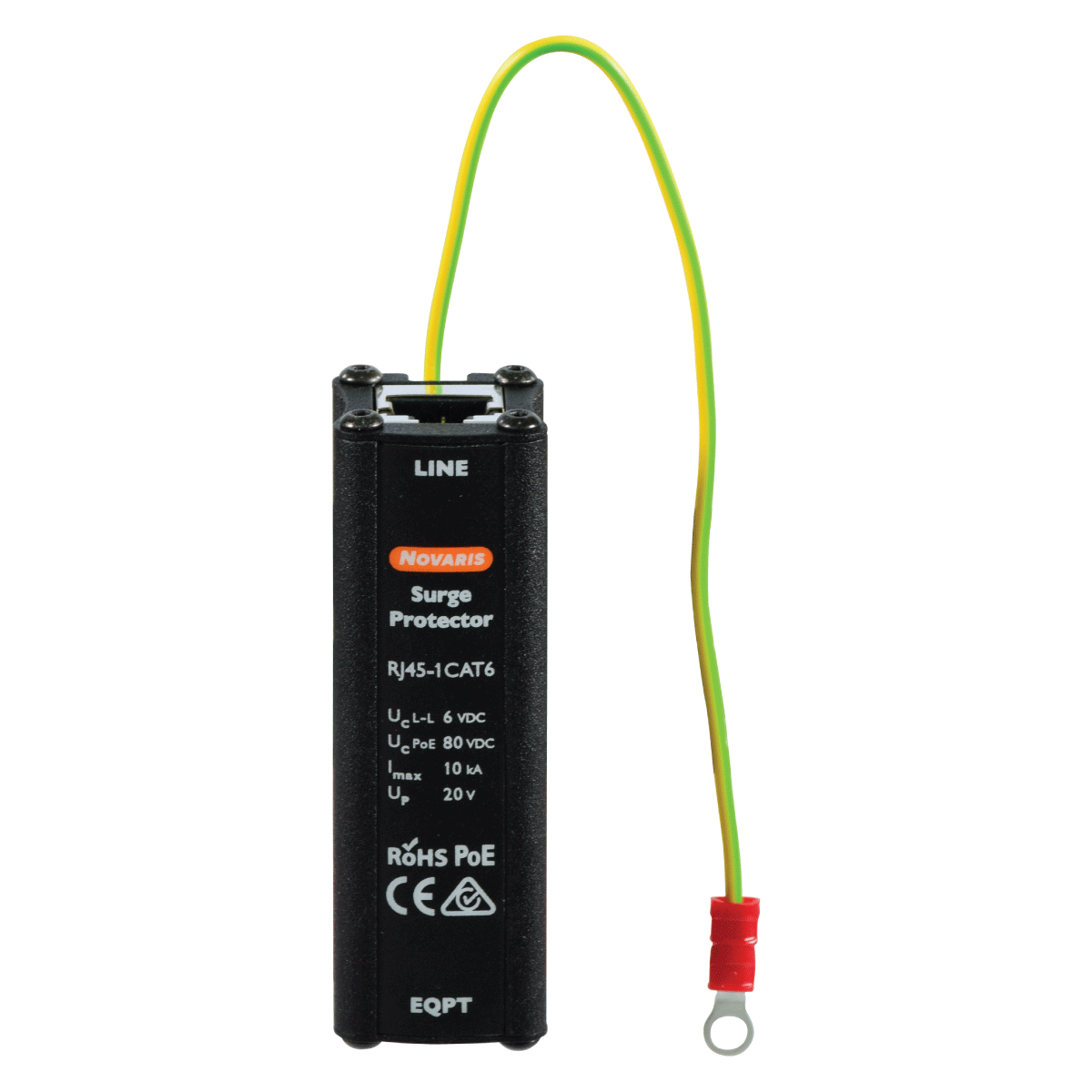

One Port Network Protectors

Product Line : RJ45-1CAT6

One Port Network Protectors

For single Ethernet ports

The Novaris RJ45 network protection products are designed for twisted pair Ethernet systems. They are suited for up to Gigabit Ethernet and PoE applications to 160W.

  • Gigabit CAT6 and PoE
  • 160W + PoE
  • Earth isolation for field STP (-EC90)
  • -1CB version for C-BusTM network protection
  • High protection per pair
  • DIN mount
SpecificationsRJ45-1CAT6RJ45-1CAT6-EC90RJ45-1CB
Maximum continuous voltage (DC)v6V6V38V
Maximum continuous voltage (AC)U꜀4V4V30V
Maximum discharge current (8/20μs)Iₘₐₓ5kA per line (10kA common mode)2kA per line (4kA common mode)
Maximum impulse current (10/350μs)IᵢₘₚkA per line (2kA common mode)
Impulse durabilityC2 8/20μs 1.5 kA – D1 10/350μs 0.5kAC2 8/20μs 1kA
Maximum load current (per pair)

IL

1A1A1A
L-L Voltage protection level @ 1 kV/μsUₚ20V20V80V
L-PE Voltage protection level @ 1 kV/μsUₚ350V350V750V
Line resistance0.1 Ω0.1 Ω0.1 Ω
Mounting methodTS35 DIN Rail
Dimensions📐W 27mm x H 80mm x D 28mm
Weight📦200g
Product DatasheetPDFRJ45-1CAT6RJ45-1CAT6-EC90RJ45-1CB
