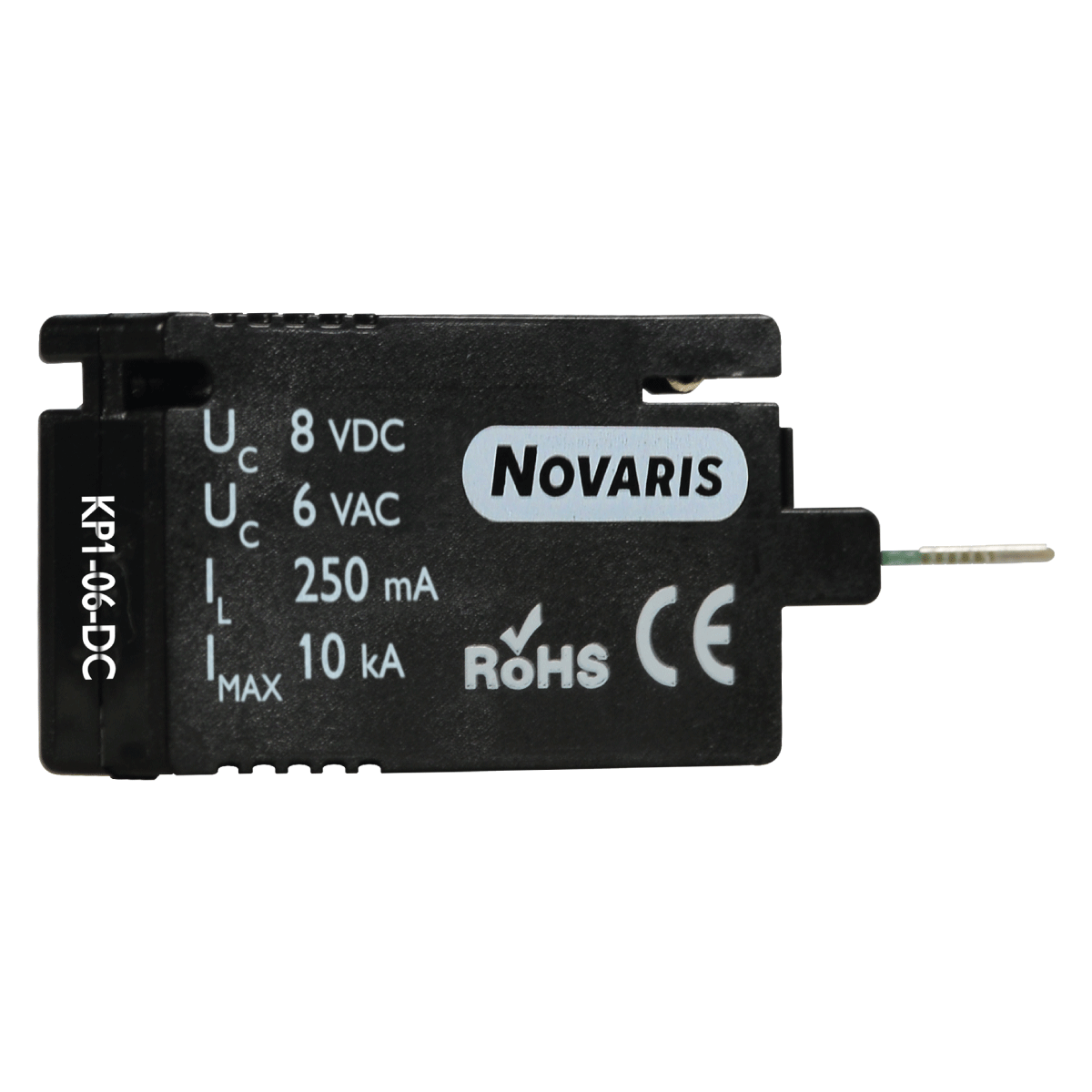

The Novaris KP provides protection for KRONE-LSA. termination systems. It is suitable for twisted pair telecommunication services. The DC rated devices can be used to protect signalling circuits terminated through a KRONE-LSA® block.
The Novaris KP provides protection for KRONE-LSA. termination systems. It is suitable for twisted pair telecommunication services. The DC rated devices can be used to protect signalling circuits terminated through a KRONE-LSA® block.
Application Notes Download
| Specifications | KP1-T | KP1-06-DC | KP1-12-DC | KP1-24-DC | KP1-VDSL | KP10-[*] | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum continuous voltage (DC) | Uₒ | 200V | 8V | 15V | 30V | 20V | * Refer to KP1-[*] version specifications | ||||
| Maximum continuous voltage (AC) | U꜀ | 140V | 6V | 11V | 22V | 140V | |||||
| Maximum discharge current (8/20μs) | Iₘₐₓ | 5kA per line (10kA common mode) | |||||||||
| Impulse durability | C2 8/20μs 5kA | ||||||||||
| Maximum load current | IL | 250mA | 250mA | 250mA | 250mA | 250mA | |||||
| L-L Voltage protection level @ 1 kV/μs | Uₚ | 220V | 10V | 17V | 36V | 220V | |||||
| L-PE Voltage protection level @ 1 kV/μs | Uₚ | 350V | 350V | 350V | 350V | 350V | |||||
| Line resistance | 2.7 Ω | 2.7 Ω | 2.7 Ω | 2.7 Ω | 0.2 Ω | ||||||
| Dimensions | 📐 | W 10mm x H 21mm x D 54mm | W 126mm x H 18mm x D 54mm | ||||||||
| Weight | 📦 | 6.5g | 150g | ||||||||
| Product Datasheet | KP1-T | KP1-06-DC | KP1-12-DC | KP1-24-DC | KP1-VDSL | KP10-[*] | |||||
