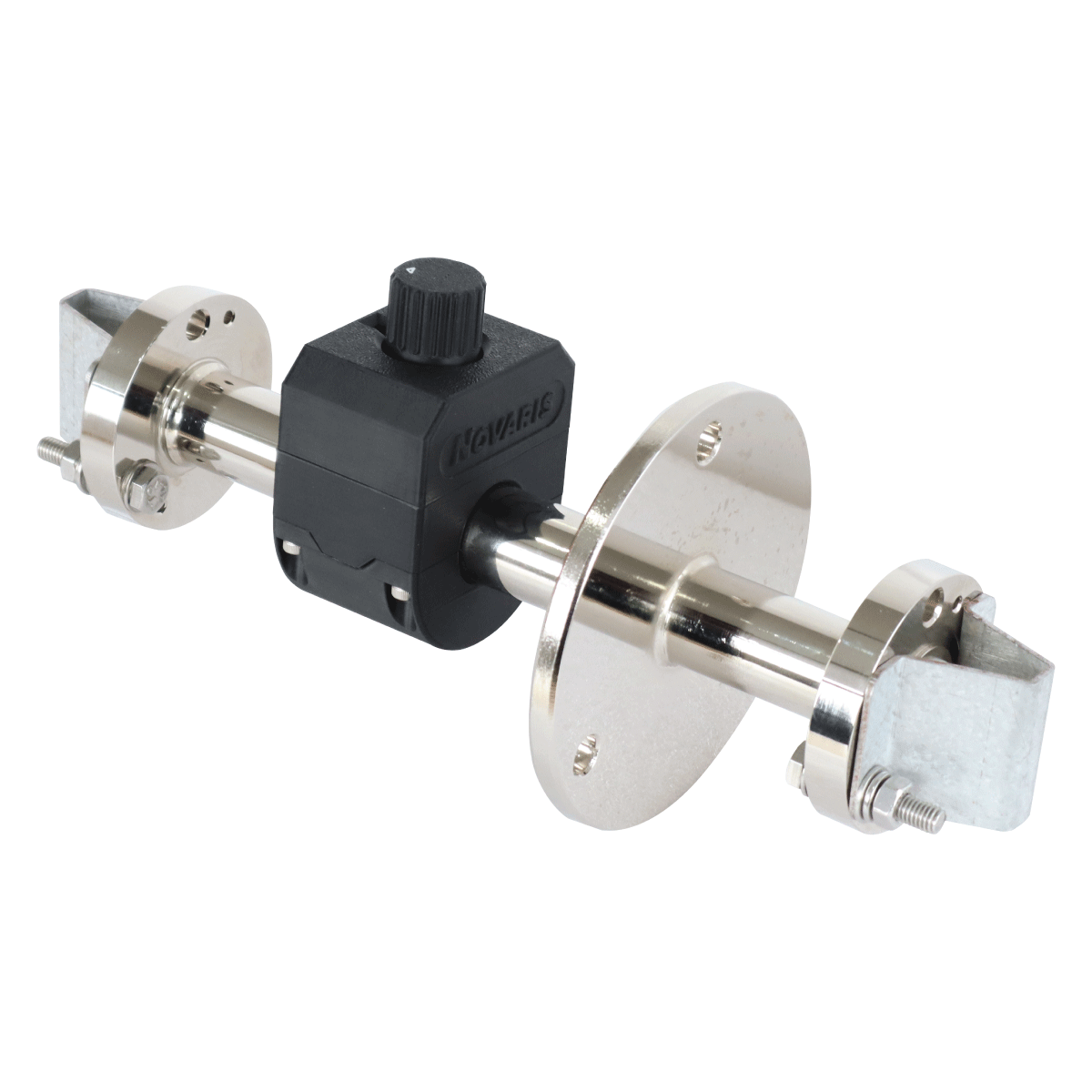

Novaris CEIA High Power Surge Protectors suit applications including MF, HF and VHF transmitters to 50kW. The spark gap arrester has an optional arc sensor which may be used to momentarily interrupt the transmitter.
Novaris CEIA High Power Surge Protectors suit applications including MF, HF and VHF transmitters to 50kW. The spark gap arrester has an optional arc sensor which may be used to momentarily interrupt the transmitter.
Application Notes Download
| Specifications | CEIA-078 | CEIA-158 | CEIA-318 | |||
|---|---|---|---|---|---|---|
| Spark-over voltage (1.5mm spark gap) | U꜀ | 1.5kV, adjustable up to 8kV | ||||
| Maximum discharge current (8/20μs) | Iₘₐₓ | 100kA | ||||
| Maximum impulse current (10/350μs) | Iᵢₘₚ | 30kA | ||||
| Power rating | > 50 kW (limited by coax cable) | |||||
| Characteristic impedence | 50 Ω | |||||
| VSWR | < 1.1 : 1 | |||||
| Connector type | 7/8” EIA | 1 5/8” EIA | 3 1/8” EIA | |||
| Dimensions | 📐 | L 253mm x W 57mm x H 112mm | L 280mm x W 89mm x H 109mm | L 280mm x W 133mm x H 167mm | ||
| Weight | 📦 | 2kg | ||||
| Product Datasheet | CEIA-078 | CEIA-158 | CEIA-318 | |||
