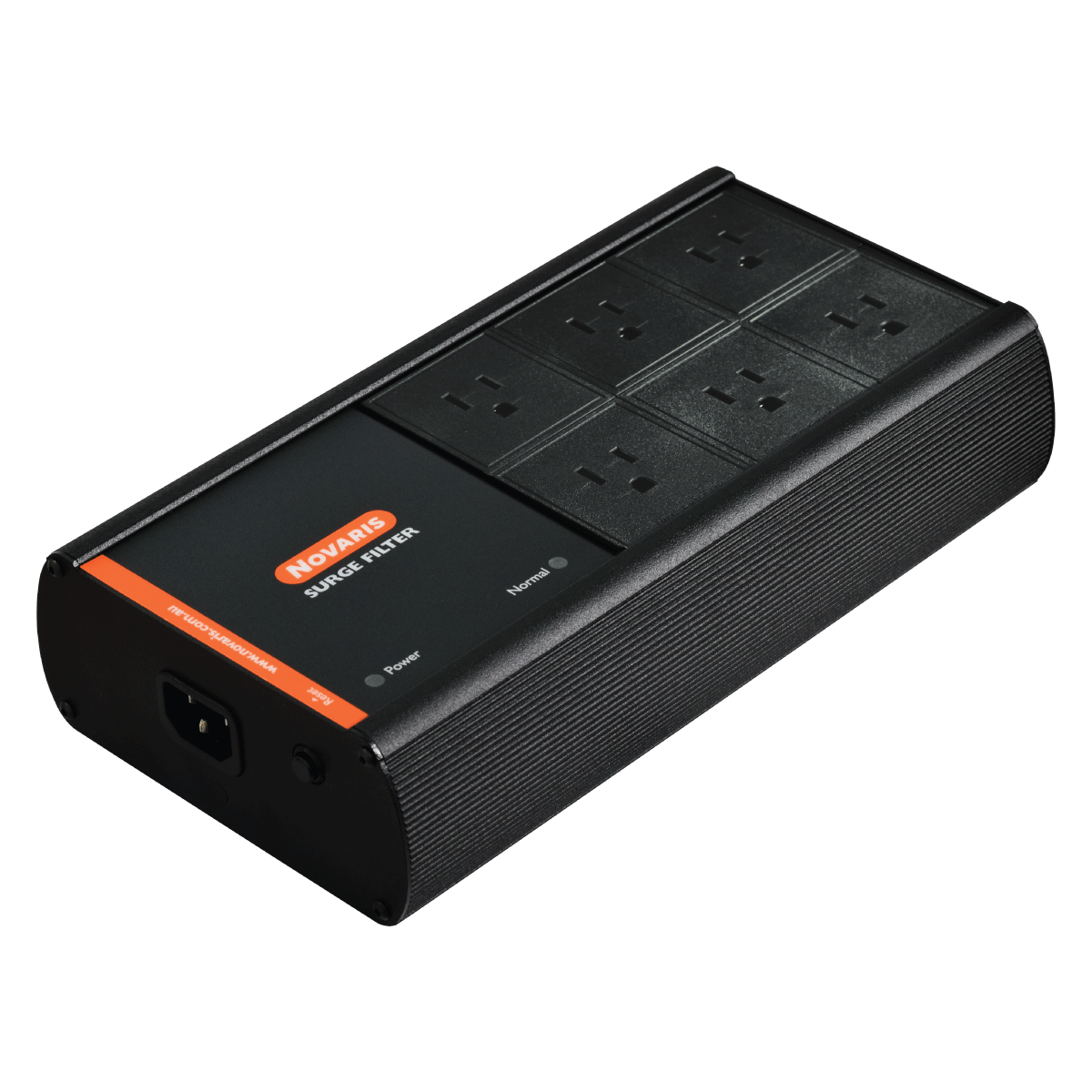

USA 10A Plug-In Surge Filters for LPZ1/2/3

For the protection of final circuit plug in appliances with US power outlets

Novaris Plug-in Surge Filters provide excellent surge protection with additional filtering for sensitive or critical electronic equipment. USA style 10A Plug-in Surge Filters plug into a standard USA type B wall outlet socket using the IEC lead supplied. The USA filter range provides multiple 3 pin type B socket outlets.

  • Type 2/3 ratings
  • Common and transverse mode filtering and protection
  • LED power and health status indications
  • Three stage protection configured for sensitive loads
  • Internal 10 amp resettable MCB
  • Robust and compact metallic enclosure

Application Notes Download

SpecificationsPP2-10-50-B130PP4-10-50-B130PP6-10-50-B130PP8-10-50-B130
Nominal voltageUₒ110V / 50Hz – 60Hz
Maximum continuous voltage ACU꜀130V / 50Hz – 60Hz
Maximum load current

IL

10A10A10A10A
L-N Maximum discharge current (8/20μs)Iₘₐₓ50kA50kA50kA50kA
L-N Impulse current (10/350μs)Iᵢₘₚ––––
L-N Nominal discharge current (15 x 8/20μs)Iₙ20kA20kA20kA20kA
L-N Voltage protection level @ 3kA (8/20μs)Uₚ<260V<260V<260V<260V
N-PE Nominal discharge current (15 x 8/20μs)Iₙ20kA20kA20kA20kA
N-PE Voltage protection level @ 1kV/μsUₚ<630V<630V<630V<630 V
Number of outlets🔌2468
Dimensions📐W 155mm x H 60mm x D 137mmW 205mm x H 60mm x D 137mmW 255mm x H 60mm x D 137mmW 305mm x H 60mm x D 137mm
Weight📦1.3kg1.5kg1.7kg2kg
Product DatasheetPDF

PP2-10-50-B130

PP4-10-50-B130PP6-10-50-B130PP8-10-50-B130
