Power Line Surge Filter High Performance for LPZ1/2/3

Power | Appliance Protection | HiFi Protection
Product Line : EX20

Power Line Surge Filter High Performance for LPZ1/2/3

A high performance surge and noise filter for the protection of hifi and other consumer electronics

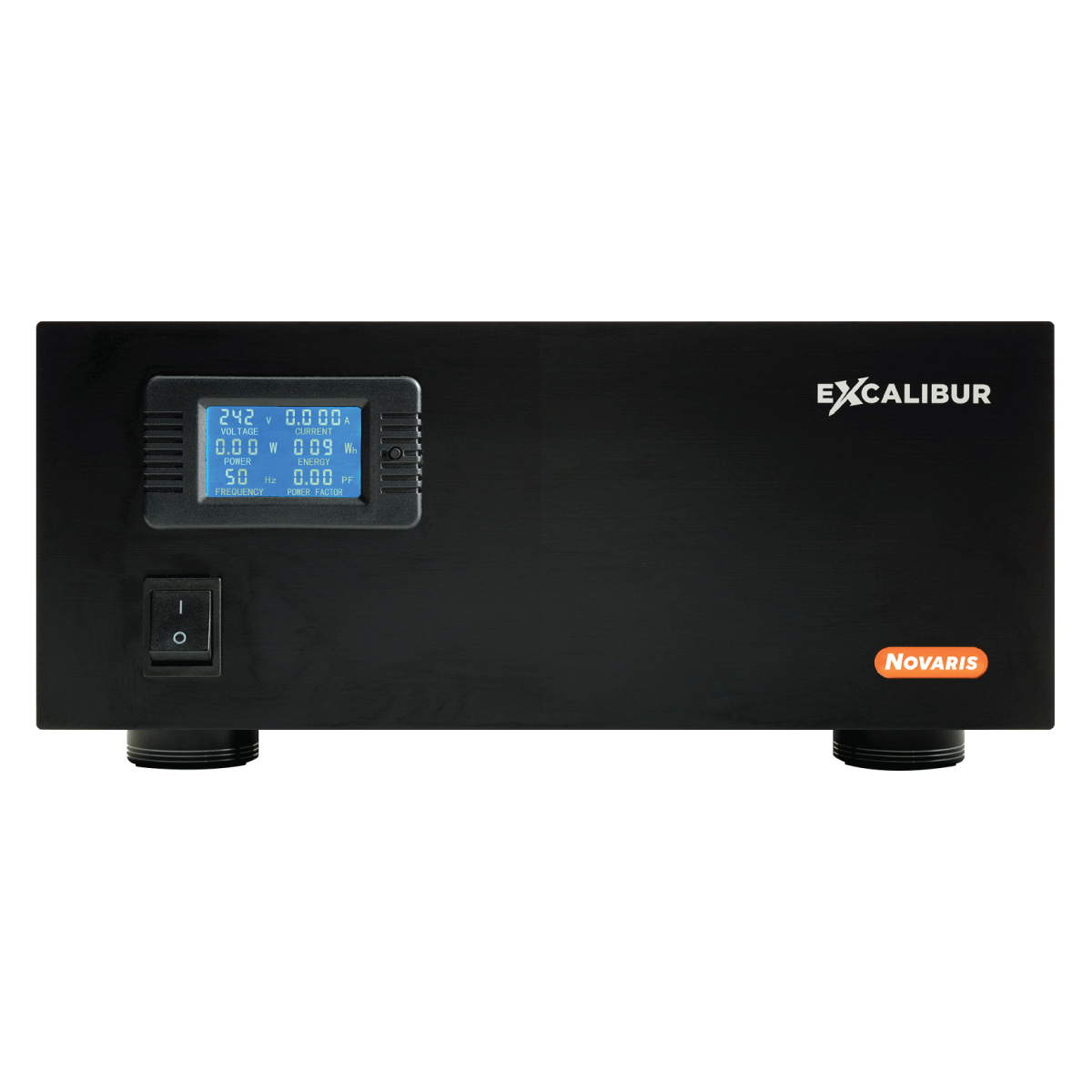

The Novaris Excalibur is a high-performance power line filter and surge protection unit designed for consumer applications such as high-fidelity sound and audio-video systems. It is housed in a shelf mounted 19-inch standard enclosure with an LCD panel indicating key electrical parameters, such as load current, power factor etc. On the rear are 8 sockets where equipment can be connected to receive clean filtered and protected power.

  • Type 2/3 ratings
  • Top tier filtering performance with very low 3dB points
  • Filtering for both common and transverse modes
  • High energy surge protection
  • Power condition LCD display
  • Heavy duty direct wired outlet sockets

Application Notes Download

SpecificationsEX20U8-50EX20B8-50
Nominal voltageUₒ230V / 50Hz – 60Hz
Maximum continuous voltage ACU꜀275V / 50Hz – 60Hz
L-N Maximum discharge current (8/20μs)Iₘₐₓ50kA50kA
L-N Nominal discharge current (15 x 8/20μs)Iₙ20kA20kA
L-N Voltage protection level @ 3kA (8/20μs)Uₚ<400V<400V
N-PE Maximum discharge current (8/20μs)Iₘₐₓ50kA50kA
N-PE Nominal discharge current (15 x 8/20μs)Iₙ20kA20kA
N-PE Voltage protection level @ 1kv / μsUₚ<600V<600V
Number of outlets🔌88
Dimensions📐W 330mm x H 147mm x D 330mmW 330mm x H 147mm x D 330mm
Weight📦11kg11kg
Product DatasheetPDFEX20U8-50EX20B8-50
Application Note
