Weatherproof Network Protector

Product Line : ORJ45

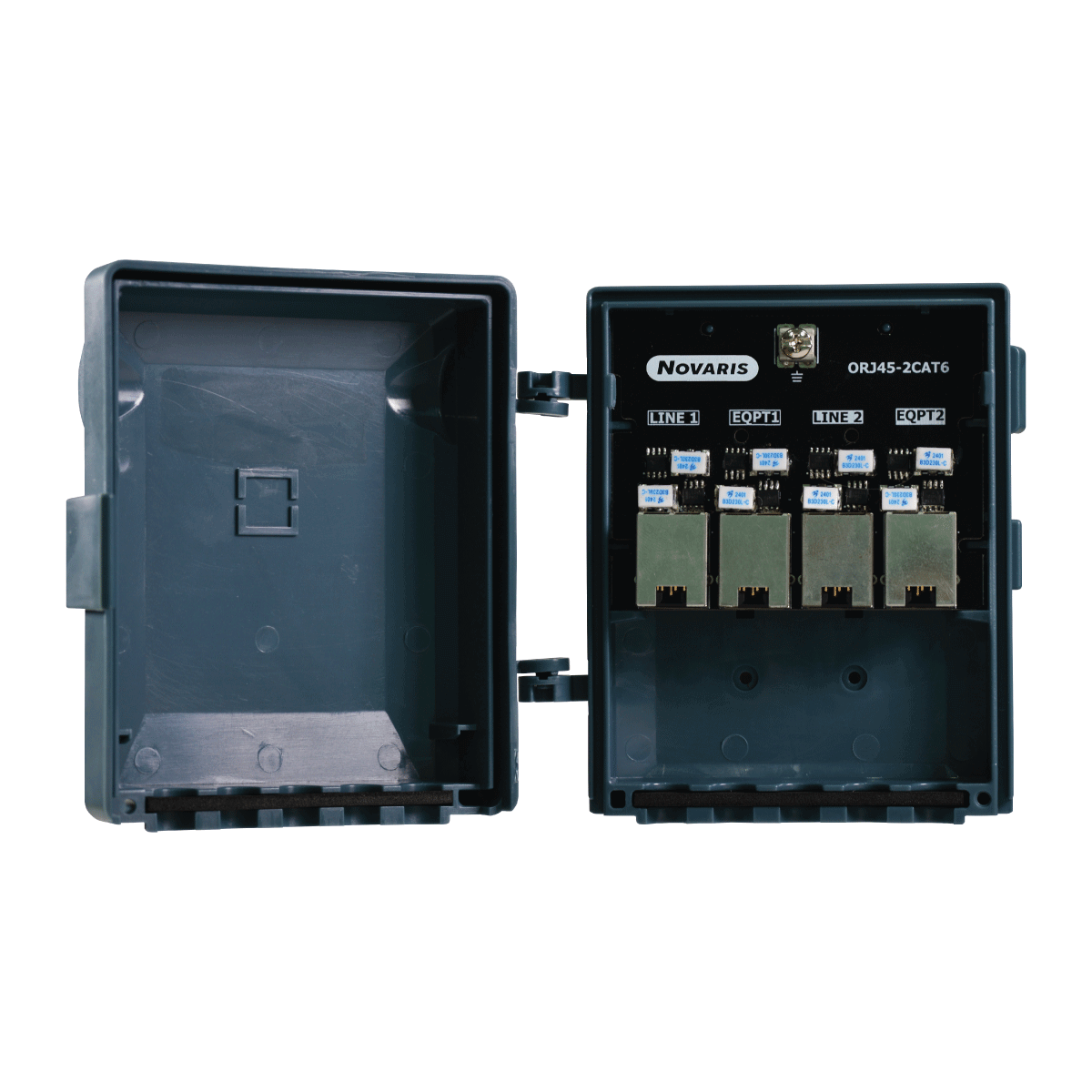

Weatherproof Network Protector

For outdoor 2 ports

The Novaris RJ45 network protection products are designed for twisted pair Ethernet systems. They are suited for up to Gigabit Ethernet and PoE applications to 160W and come in an outdoor housing suitable for PoE applications such as network cameras.

  • Gigabit CAT6 and PoE
  • 160W + PoE
  • 2 ports
  • High protection per pair
  • Outdoor housing IP65 weatherproof
SpecificationsORJ45-2CAT6
Maximum continuous voltage (DC)U꜀6V
Maximum continuous voltage (AC)U꜀4V
Maximum discharge current (8/20μs)Iₘₐₓ5kA per line (10kA common mode)
Maximum impulse current (10/350μs)Iᵢₘₚ1kA per line (2kA common mode)
Impulse durabilityC2 8/20μs 1.5kA – D1 10/350μs 0.5kA
Maximum load current

IL

1A
L-L Voltage protection level @ 1 kV/μsUₚ20V
L-PE Voltage protection level @ 1 kV/μsUₚ350V
Line resistance0.1 Ω
Mounting methodCable tie
No of protected network circuits2
Dimensions📐W 118mm x H 124mm x D 42mm
Weight📦200g
Product DatasheetPDFORJ45-2CAT6
Installation GuidePDFORJ45-2CAT6
