Two Pair Threaded Signal Protectors

Product Line : SLT4

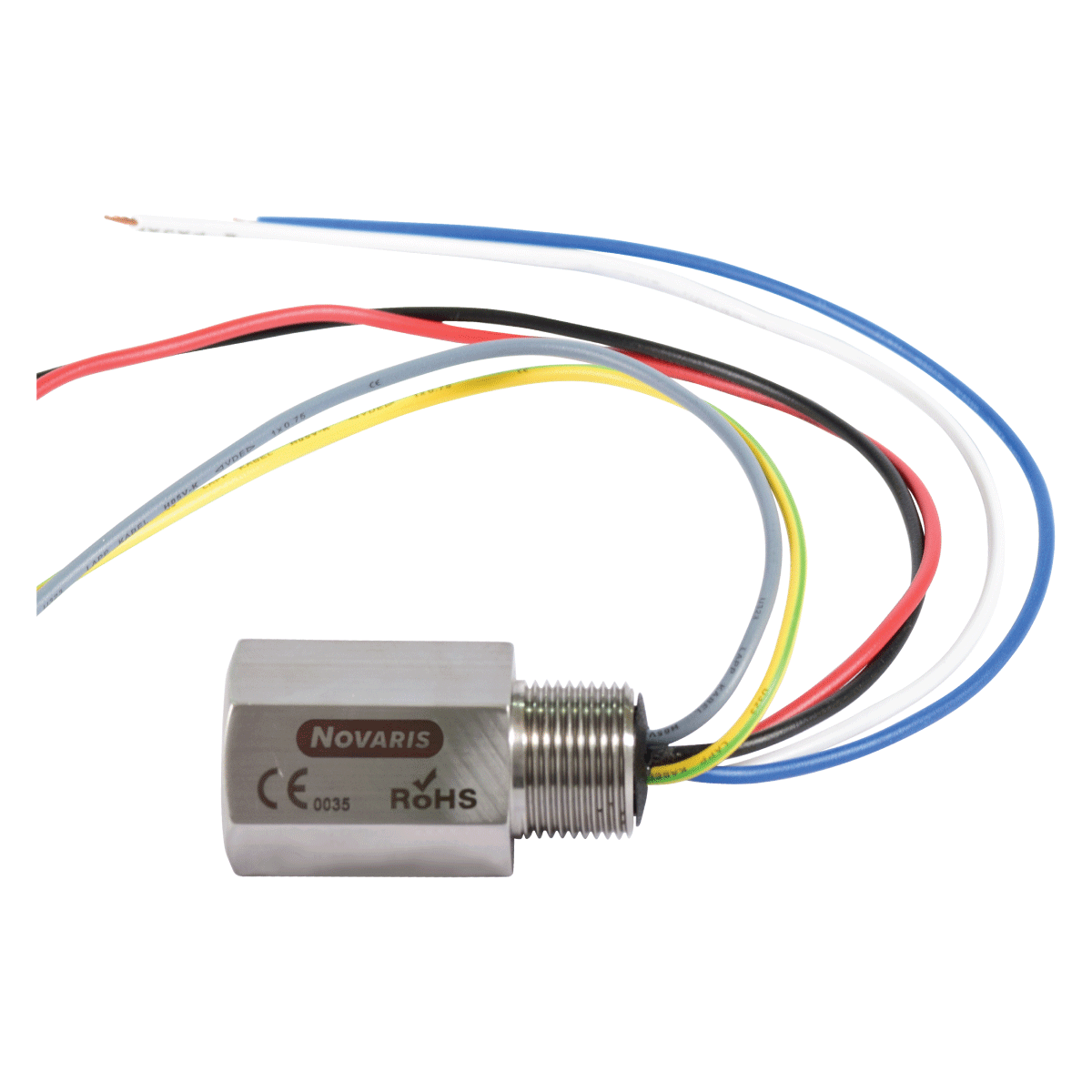

Two Pair Threaded Signal Protectors

For four wires threaded body Ex ia Ex d

Novaris SLT4 two pair threaded instrument protectors provide surge protection for twisted pair signalling schemes. They are designed to be installed directly at field equipment, providing protection against induced surges and transients.

  • IEC Ex ia and Ex d approved
  • IP 67 rated
  • M20, M25 and 1/2” NPT thread options
  • 10 kA protection
  • 316 stainless steel
SpecificationsSLT4-7v5SLT4-18SLT4-36SLT4-68SLT4-RTD
Maximum continuous voltage (DC)U꜀7V16V34V65V8V
Maximum continuous voltage (AC)U꜀5V11V24V46V6V
Maximum discharge current (8/20μs)Iₘₐₓ5kA per line (10kA common mode)
Maximum impulse current (10/350μs)Iᵢₘₚ1.25kA per line (2.5kA common mode)
Impulse durabilityC2 8/20μs 5 kA – D1 10/350μs 2.5kA
L-L Voltage protection level @ 1 kV/μsUₚ40V50V75V100V40V
L-PE Voltage protection level @ 1 kV/μsUₚ350V350V350V350V350V
Dimensions📐W 25mm X H 29mm X D 53mm
Weight📦165g
Product DatasheetPDFSLT4-7v5SLT4-18SLT4-36SLT4-68SLT4-RTD
