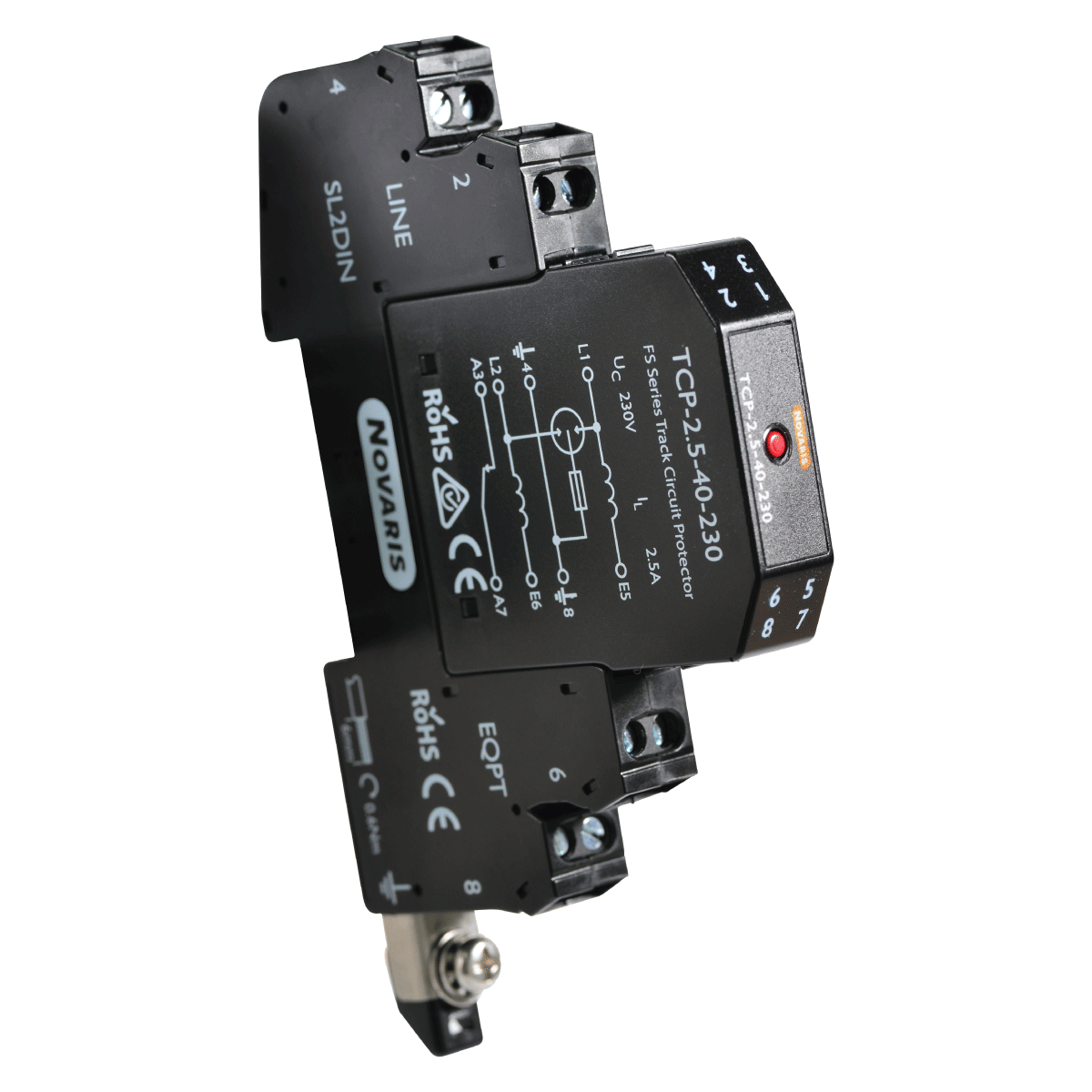

Track Circuit Surge Protectors (TCP-2.5)

Product Line : TCP-2.5

Track Circuit Surge Protectors (TCP-2.5)

For track circuits

The Novaris TCP range is designed to protect railway signalling track circuits from the damaging effects of surges and traction system disturbances. Models are available for most track circuits including audio frequency jointed and jointless as well as simple low frequency AC and DC variants.

  • High surge ratings
  • DIN rail mount
  • Two port series connection
  • Alarm models available
SpecificationsTCP-2.5-40-230TCP-2.5-40-350
Maximum continuous voltage (DC)U꜀200V320V
Maximum continuous voltage (AC)U꜀140V250V
Maximum discharge current (8/20μs)Iₘₐₓ20kA per line (40kA common mode)
Maximum impulse current (10/350μs)Iᵢₘₚ2.5kA per line (5kA common mode)
Impulse durabilityC2 8/20μs 10 kA – D1 10/350μs 5kA
Maximum load current

IL

2.5A
L-L Voltage protection level @ 1 kV/μsUₚ825V1010V
L-PE Voltage protection level @ 1 kV/μsUₚ580V690V
Line resistance0.3Ω
Dimensions📐W 12mm X H 110mm X D 71mm
Weight📦50g
Product DatasheetPDFTCP-2.5-40-230TCP-2.5-40-350
Installation GuidePDFTCP-2.5-40-230TCP-2.5-40-350
