Track Circuit Surge Protectors

Product Line : SLD-MPU

Track Circuit Surge Protectors

SLD-MPU

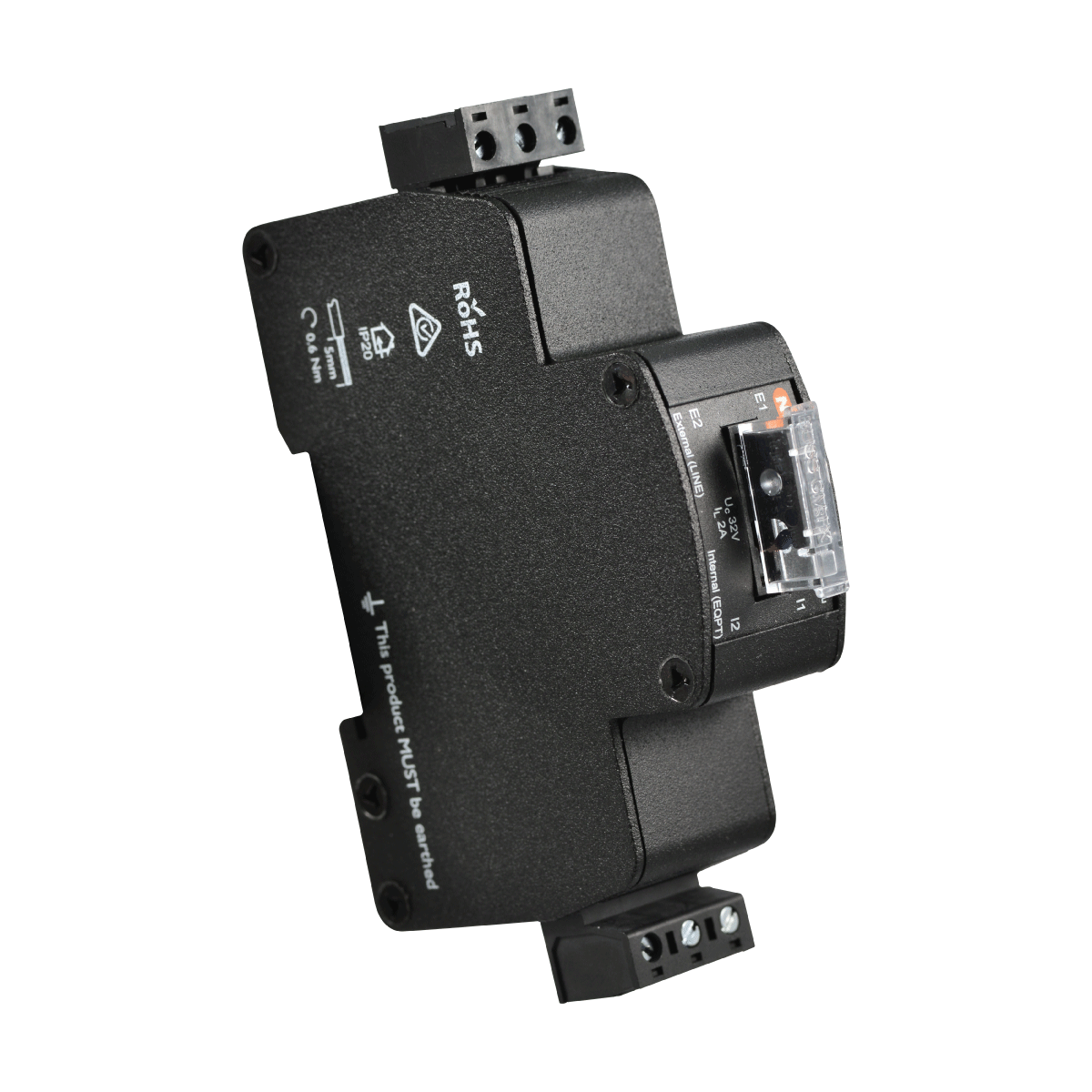

The Novaris SLD1-MPU9 is designed to protect railway signalling systems such as VPI and SSI. Like all MPU models it has a failfafe design featuring an indicating fuse in the earth return of the primary gas discharge tube. Novaris manufactures around 20 different MPU versions all designed for railway signalling applications. For information about other models please contact Novaris or your local distributor.

  • High surge ratings
  • DIN rail mount
  • Two port series connection
  • Alarm models available
SpecificationsSLD1-MPU9
Maximum continuous voltage (DC)U꜀32V
Maximum continuous voltage (AC)U꜀22V
Maximum discharge current (8/20μs)Iₘₐₓ10kA per line
Impulse durabilityC2 8/20μs 10kA
Maximum load current

IL

2A
L-L Voltage protection level @ 1 kV/μsUₚ45V
L-PE Voltage protection level @ 1 kV/μsUₚ350V
Line resistance0.2Ω
Dimensions📐W 28mm x H 115mm x D78mm
Weight📦200g
Product DatasheetPDFSLD1-MPU9
Installation GuidePDFSLD1-MPU9
