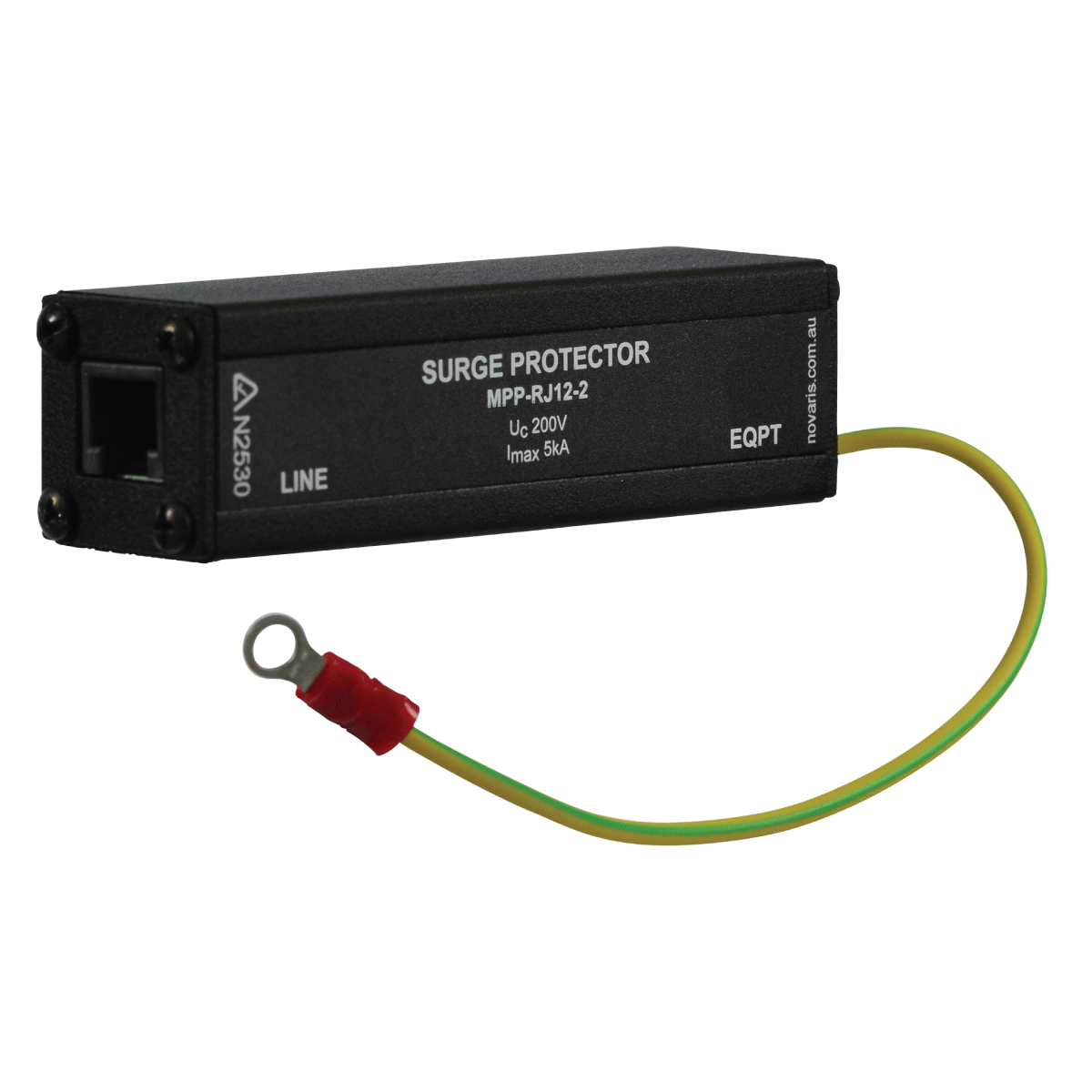

Novaris Modular Plug Protectors are designed for twisted pair telecommunication services suitable for telephones, FAX, dial-up, ISDN and xDSL modems.
Novaris Modular Plug Protectors are designed for twisted pair telecommunication services suitable for telephones, FAX, dial-up, ISDN and xDSL modems.
Application Notes Download
| Specifications | MPP-RJ12-1 | MPP-RJ12-2 | MPP-RJ45 | MPP-VDSL | ||||
|---|---|---|---|---|---|---|---|---|
| Number of pairs | 1 | 2 | 2 | 1 | ||||
| Maximum continuous voltage (DC) | U꜀ | 200V | 200V | 200V | 230V | |||
| Maximum continuous voltage (AC) | U꜀ | 140V | 140V | 140V | 162V | |||
| Maximum discharge current (8/20μs) | Iₘₐₓ | 10kA per line (10kA common mode) | 5kA per line (10kA common mode) | |||||
| Maximum impulse current (10/350μs) | Iᵢₘₚ | 1.2 kA per line (2.5kA common mode) | ||||||
| Impulse durability | C2 8/20μs 5kA | |||||||
| Maximum load current | IL | 350mA | 350mA | 350mA | 1A | |||
| L-L Voltage protection level @ 1 kV/μs | Uₚ | 150V | 150V | 150V | 950V | |||
| L-PE Voltage protection level @ 1 kV/μs | Uₚ | 350V | 350V | 350V | 770V | |||
| Line resistance | 8.2 Ω | 8.2 Ω | 8.2 Ω | 0.1 Ω | ||||
| Dimensions | 📐 | W 26mm x H 26mm x D 95mm | W 27mm x H 80mm x D 28mm | |||||
| Weight | 📦 | 100g | 100g | 100g | 200g | |||
| Product Datasheet | MPP-RJ12-1 | MPP-RJ12-2 | MPP-RJ45 | MPP-VDSL | ||||
| Installation Guide | MPP-RJ12-1 | MPP-RJ12-2 | MPP-RJ45 | MPP-VDSL | ||||
