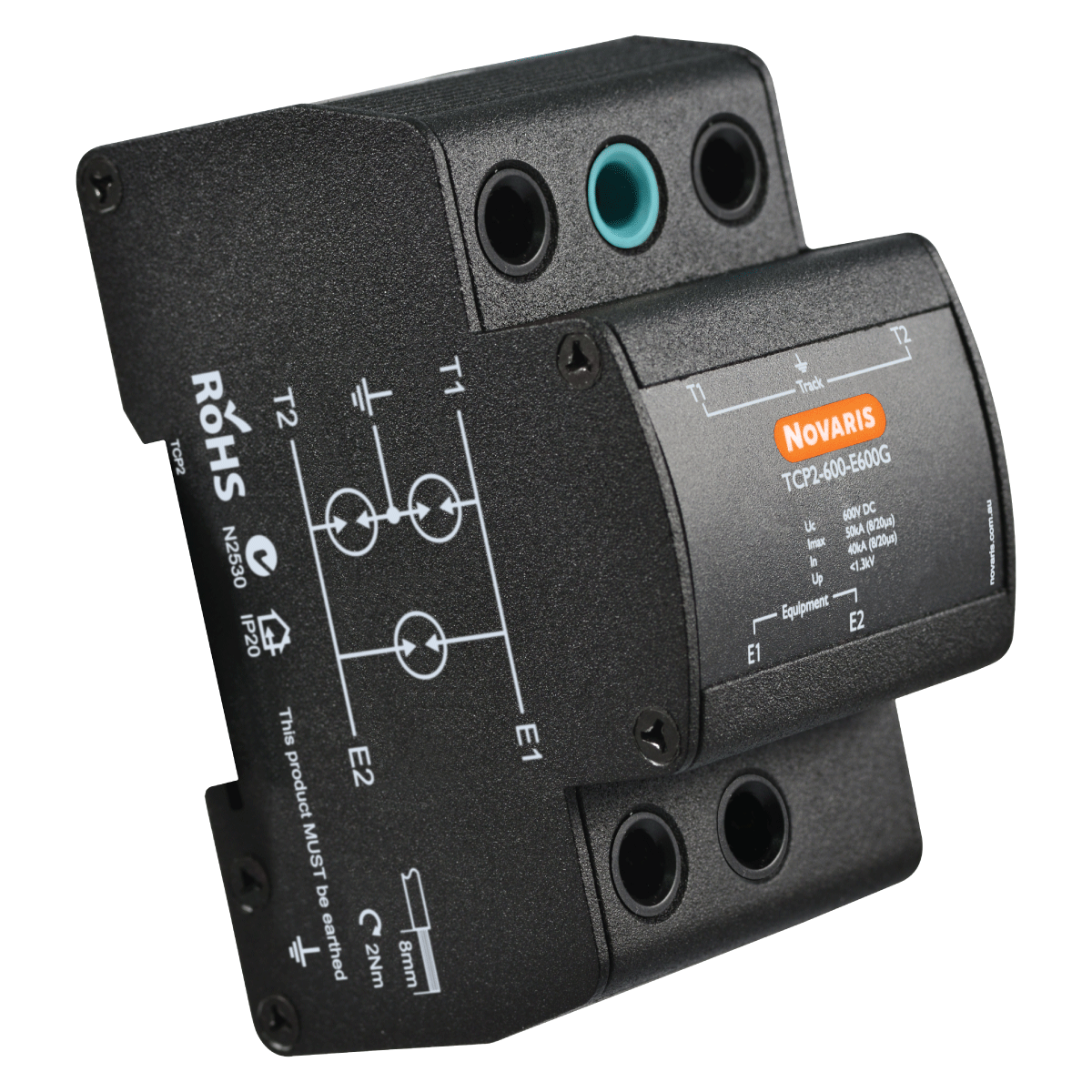

The Novaris TCP2-600-600G provides all mode surge protection for two signal lines. These are used for railways track circuits and connect directly to the conductors from the rails.
The Novaris TCP2-600-600G provides all mode surge protection for two signal lines. These are used for railways track circuits and connect directly to the conductors from the rails.
Application Notes Download
| Specifications | TCP2-600-E600G | |
|---|---|---|
| DC spark over voltage | U꜀ | 600V |
| Maximum discharge current (8/20μs) | Iₘₐₓ | 60kA |
| Active elements | 3 Gas discharge tubes, all mode | |
| Voltage tolerance | ±20% | |
| Voltage protection level @ 1kV/μs | Uₚ | 1300V |
| Dimensions | 📐 | W 54mm X H 95mm X D70mm |
| Weight | 📦 | 300g |
| Product Datasheet | TCP2-600-E600G | |
| Installation Guide | TCP2-600-E600G | |
