Surge Cathodic Decoupler

Product Line : SCD

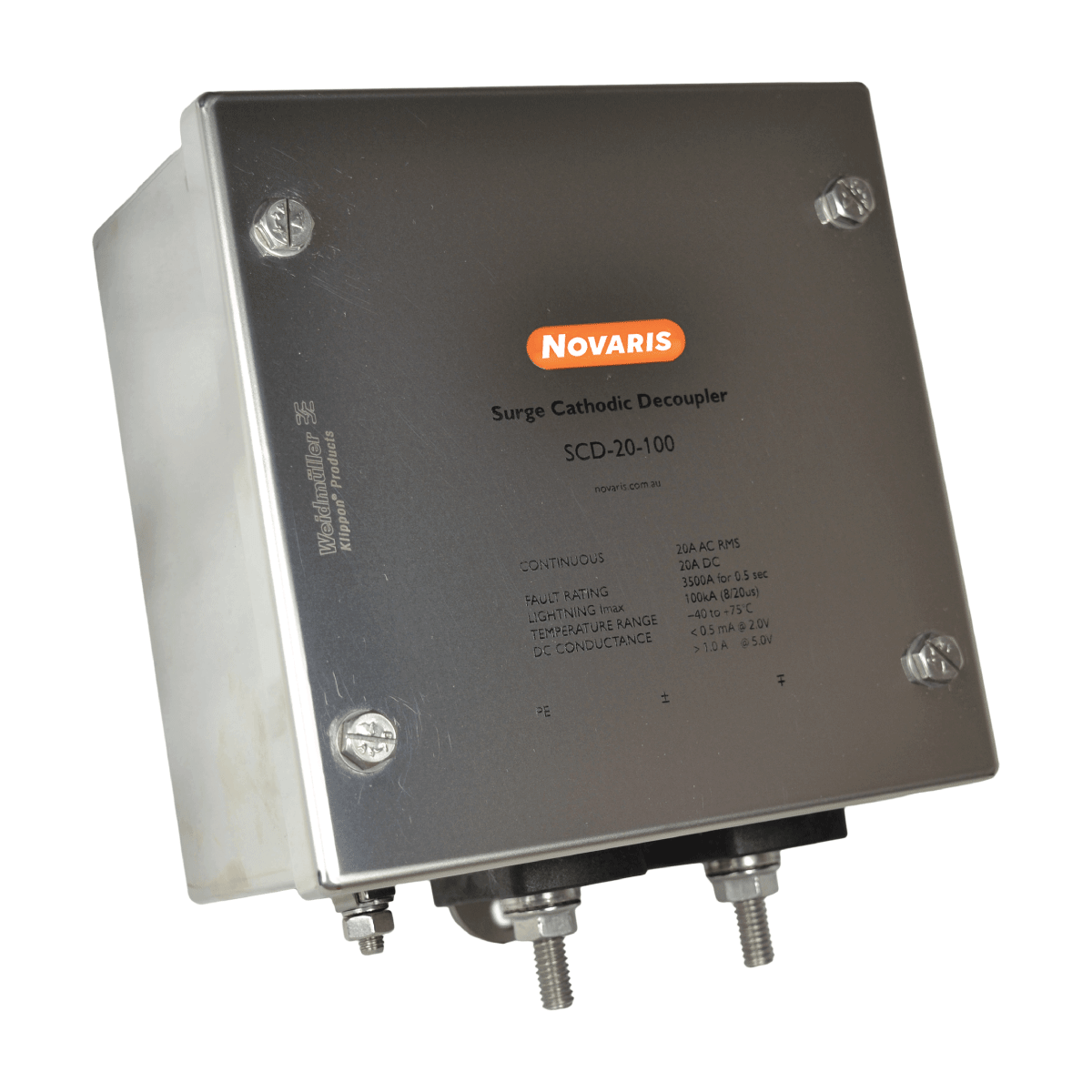

Surge Cathodic Decoupler

Pipeline insulating joint protection

Novaris SCD Series provide pipelines with surge, AC and DC voltage protection whilst providing low voltage DC isolation for cathodic protection. This combination provides the best electrical protection for ICCP systems, pipelines and personnel.

SpecificationsSCD-20-100
Nominal voltageUₒ<2VDC blocking – AC and >2VDC passing
Maximum discharge current (8/20μs)Iₘₐₓ100kA
Maximum impulse current (10/350μs)Iᵢₘₚ30kA
Voltage protection level @ 5 kV 10/700μsUₚ230V
Dimensions📐W 150mm x H 150mm x D 90mm
Weight📦3.5kg
Product DatasheetPDFSCD-20-100
