One Pair 250mA Signal Line Protectors

Product Line : SL

One Pair 250mA Signal Line Protectors

For twisted pair signalling

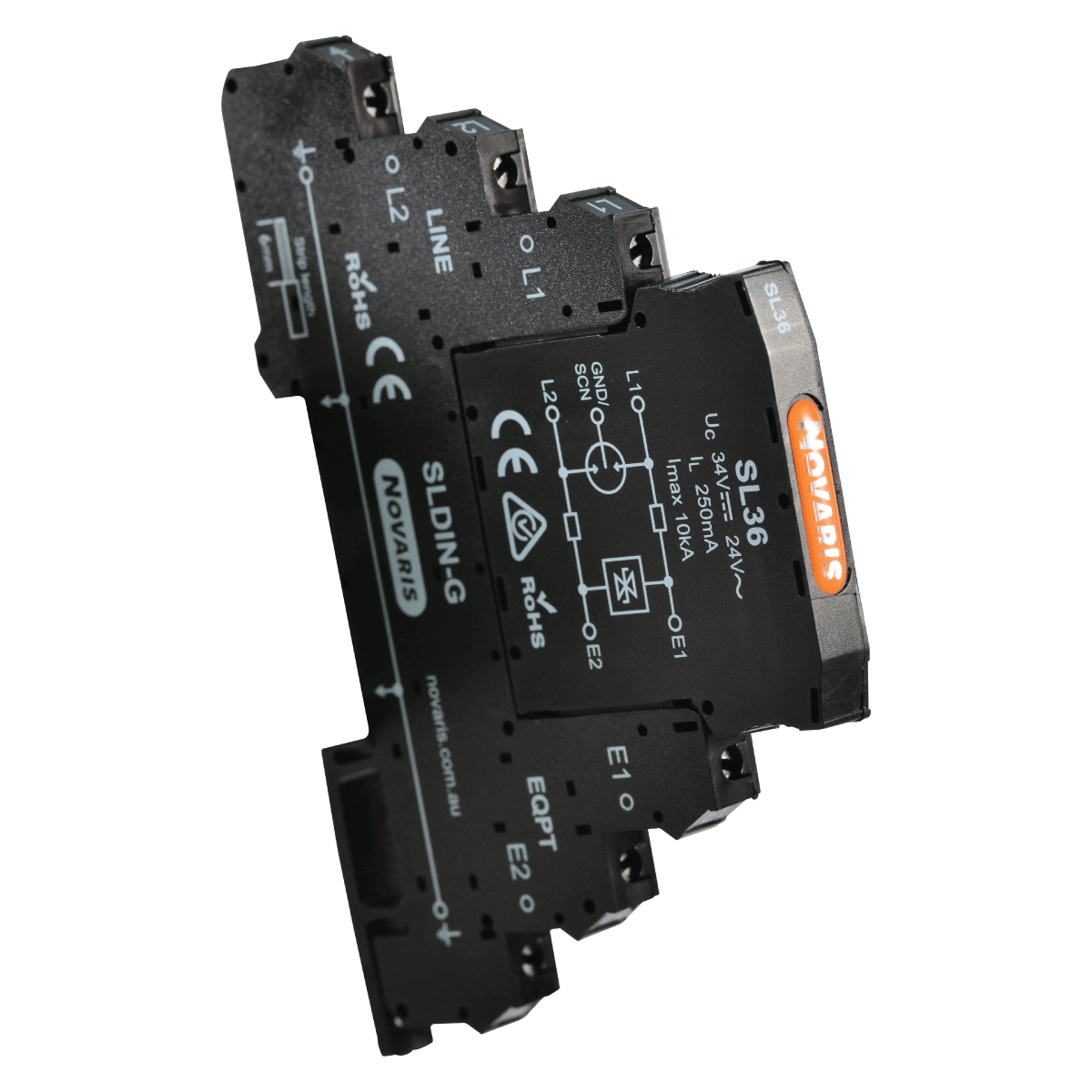

Novaris SL plug-in signal line protectors provide surge protection for most twisted pair signalling schemes. They are ideal for the protection of PLCs, fire and security systems, telecommunications, telemetry systems, SCADA and other industrial monitoring and control equipment.

  • Multistage protection
  • Replaceable cartridge
  • Earth isolation versions (-EC90)
  • Zero earth leakage
  • 10 kA surge rating
  • 7mm width
SpecificationsSL7v5SL18SL36SL68SL485SL-RTDSL420
Maximum continuous voltage (DC)U꜀7V16V34V65V8V7V34V
Maximum continuous voltage (AC)U꜀5V11V24V46V6V5V
Maximum discharge current (8/20μs)Iₘₐₓ5kA per line (10kA common mode)
Maximum impulse current (10/350μs)Iᵢₘₚ1.25kA per line (2.5kA common mode)
Impulse durabilityC2 8/20μs 5kA – D1 10/350μs 2.5kA
Maximum load current

IL

250mA250mA250mA250mA250mA250mA250mA
L-L Voltage protection level @ 1 kV/μsUₚ15V30V40V 80 V15V15V40V
L-PE Voltage protection level @ 1 kV/μsUₚ350V350V350V350V350V350V350V
Line resistance3.9 Ω3.9 Ω3.9 Ω3.9 Ω3.9 Ω3.9 Ω3.9 Ω
Earth Isolation Versions-EC90
Dimensions📐W 7mm X H 102mm X D 68mm
Weight📦35g
Product DatasheetPDFSL7v5SL18SL36SL68SL485SL-RTDSL420
