One Pair 2.5A Signal Protectors

Product Line : SLH2

One Pair 2.5A Signal Protectors

For twisted pairs to 2.5A

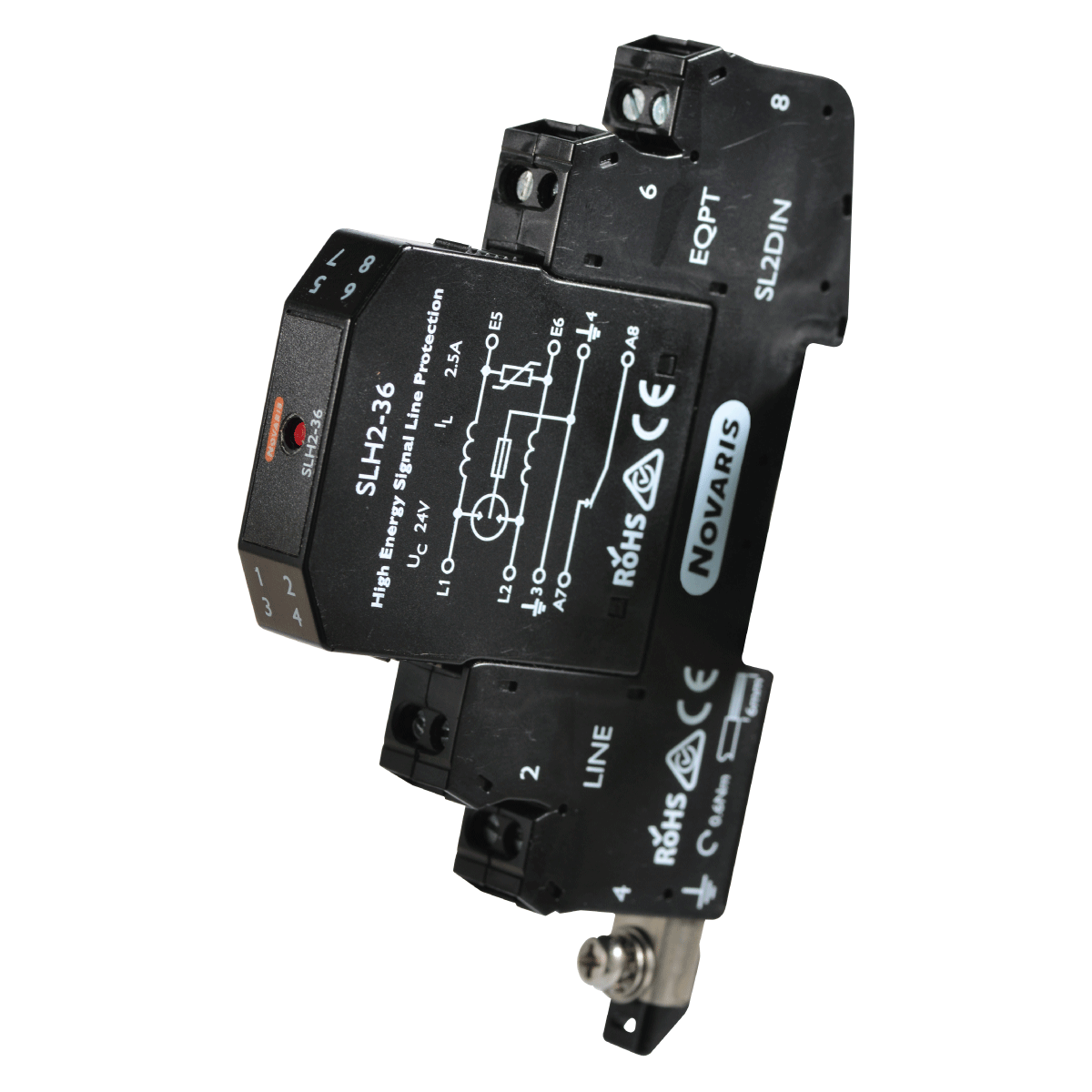

Novaris SLH2 plug-in signal line protectors provide surge protection for most twisted pair signalling schemes with load current up to 2.5A. They are ideal for the protection of PLCs, fire and security systems, telecommunications, telemetry systems, railway signalling, SCADA and other industrial monitoring and control equipment.

  • 20 kA surge rating
  • Visual health indicator
  • Replaceable cartridge
  • Earth isolation versions (-EC90)
  • Multistage protection
  • Failsafe design
SpecificationsSLH2-18SLH2-36SLH2-68SLH2-130
Maximum continuous voltage (DC)U꜀16V34V65V155V
Maximum continuous voltage (AC)Uc11V24V46V110V
Maximum discharge current (8/20μs)Iₘₐₓ10kA per line (20kA common mode)
Maximum impulse current (10/350μs)Iᵢₘₚ2.5kA per line (5kA common mode)
Impulse durabilityC2 8/20μs 10kA – D1 10/350μs 5kA
Maximum load current

IL

2.5A2.5A2.5A2.5A
L-L Voltage protection level @ 1 kV/μsUₚ30V40V80V300V
L-PE Voltage protection level @ 1 kV/μsUₚ350V350V350V350V
Line resistance0.06 Ω0.06 Ω0.06 Ω0.06 Ω
Dimensions📐W 12mm X H 110mm X D 71mm
Weight📦75g
