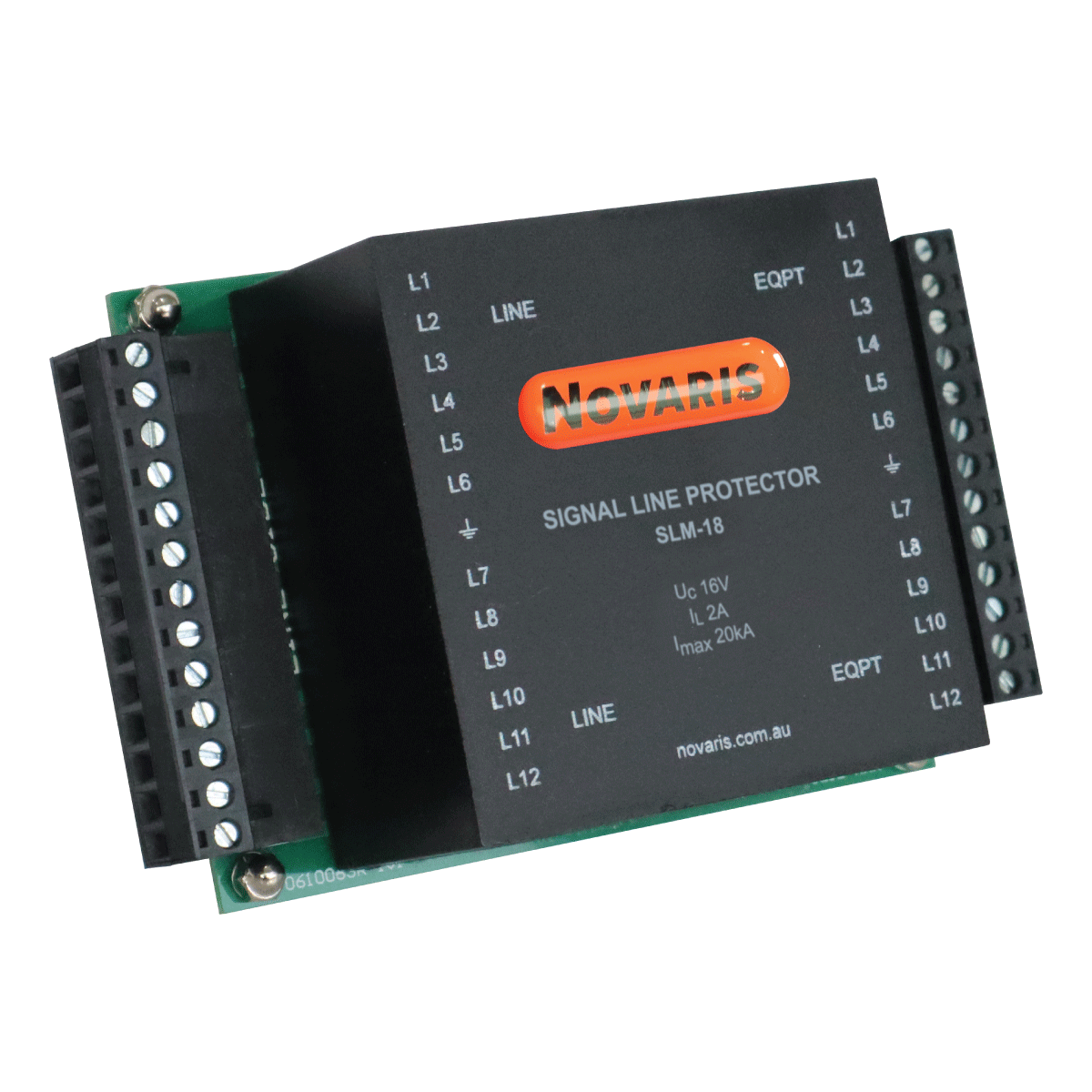

Novaris SLM protectors offer protection for up to 12 signal lines. Typical applications include process control, telemetry, PLC, and irrigation systems.
Novaris SLM protectors offer protection for up to 12 signal lines. Typical applications include process control, telemetry, PLC, and irrigation systems.
Application Notes Download
| Specifications | SLM-18 | SLM-36 | ||
|---|---|---|---|---|
| Maximum continuous voltage (DC) | U꜀ | 16V | 34V | |
| Maximum continuous voltage (AC) | U꜀ | 11V | 24V | |
| Maximum discharge current (8/20μs) | Iₘₐₓ | 20kA | ||
| Maximum impulse current (10/350μs) | Iᵢₘₚ | |||
| Impulse durability | ||||
| Maximum load current | IL | 2A | 2A | |
| L-PE Voltage protection level @ 1 kV/μs | Uₚ | 20V | 39V | |
| Line resistance | 0.1 Ω | 0.1 Ω | ||
| Dimensions | 📐 | W 130mm X H 80mm X D 60mm | ||
| Weight | 📦 | 250g | ||
| Product Datasheet | SLM-18 | SLM-36 | ||
| Installation Guide | SLM-18 | SLM-36 | ||
