Load Cell Protector, Hazardous Area

Product Line : IS-LCP

Load Cell Protector, Hazardous Area

For four and six wire load cells Ex ia

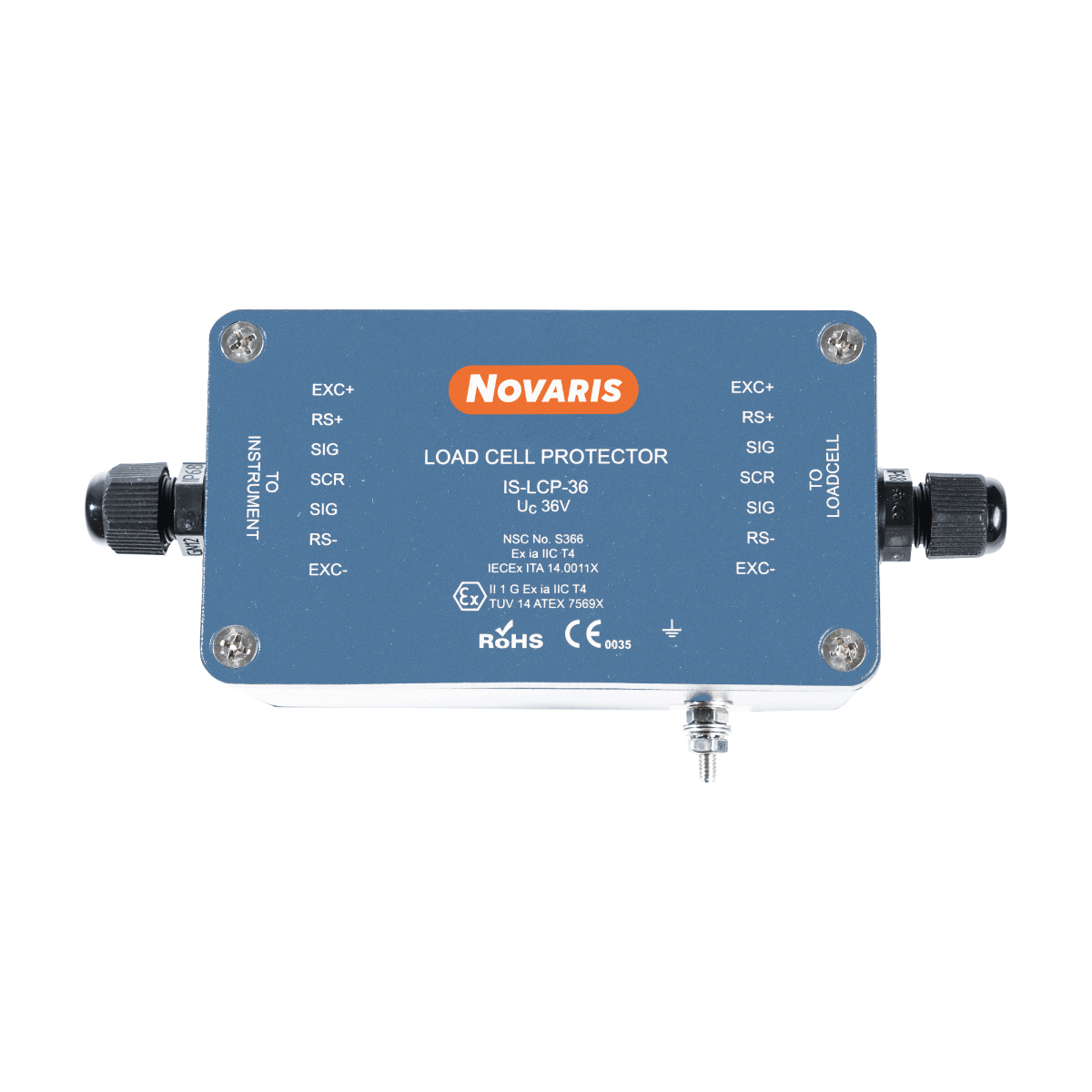

The Novaris IS-LCP provides protection for four and six-wire load-cells in addition to the associated measuring instrument. The IS-LCP is contained within an IP65 enclosure. Installation of the LCP is certified and does not affect weigh-bridge calibration.

  • IEC Ex ia certified
  • IP65 enclosure
  • Does not affect loadcell calibration: Certification NSC S366
  • Protection for up to six lines
SpecificationsIS-LCP-18IS-LCP-36
Maximum continuous voltage (DC)U꜀18V36V
Maximum continuous voltage (AC)U꜀12V24V
Maximum discharge current (8/20μs)Iₘₐₓ250 A per line
Maximum impulse current (10/350μs)Iᵢₘₚ
Maximum load current

IL

6.5A6.5A
L-L Voltage protection level @ 1 kV/μsUₚ45V80V
L-PE Voltage protection level @ 1 kV/μsUₚ350V350V
Line resistance0.2 Ω0.2 Ω
Dimensions📐W 160mm X H 66mm X D 56mm
Weight📦600g
Product DatasheetPDFIS-LCP-18IS-LCP-36
