Product Line : GDT-Hx

GDT-Hx

For high exposure track circuits – replacement for early technology air gap and MOV components

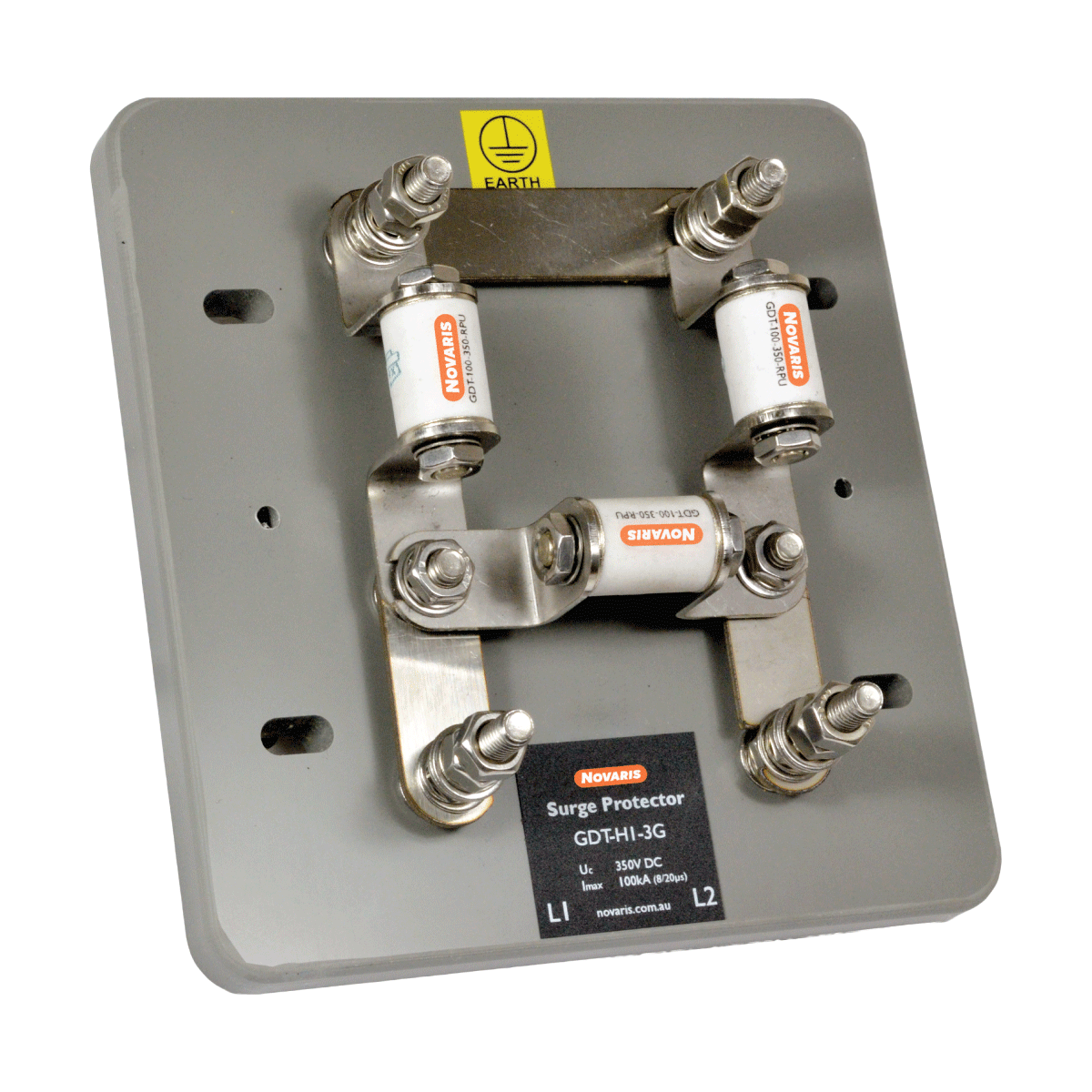

The Novaris GDT-H1-3G and GDT-H2-6G provide protection for track circuits. These units utilise fast acting, high energy gast discharge tubes. These provide a replacement for early technology air gap and MOV components. These are used for railways track circuits and connect directly to the conductors from the rails. Panels without gas tubes are available as GDT-H1 and GDT-H2.Gas tubes are available as GDT-100-350-RPU.

  • Uses GDT-100
  • Single and two pairs

Application Notes Download

SpecificationsGDT-H1-3GGDT-H2-6G
Number of Lines2 (single pair)4 (two pairs)
DC spark over voltageU꜀350V350V
Maximum discharge current (8/20μs)Iₘₐₓ150kA150kA
Impulse discharge current (10/350ms)Iᵢₘₚ30kA30kA
Active elements 3 Gas discharge tubes 6 Gas discharge tubes
Voltage tolerance±20%±20%
L-PE Voltage protection level @ 1kV/μsUₚ800V800V
Dimensions📐W 140mm X H 45mm X D 145mmW 240mm X H 45mm X D 145mm
Weight📦800g1500g
