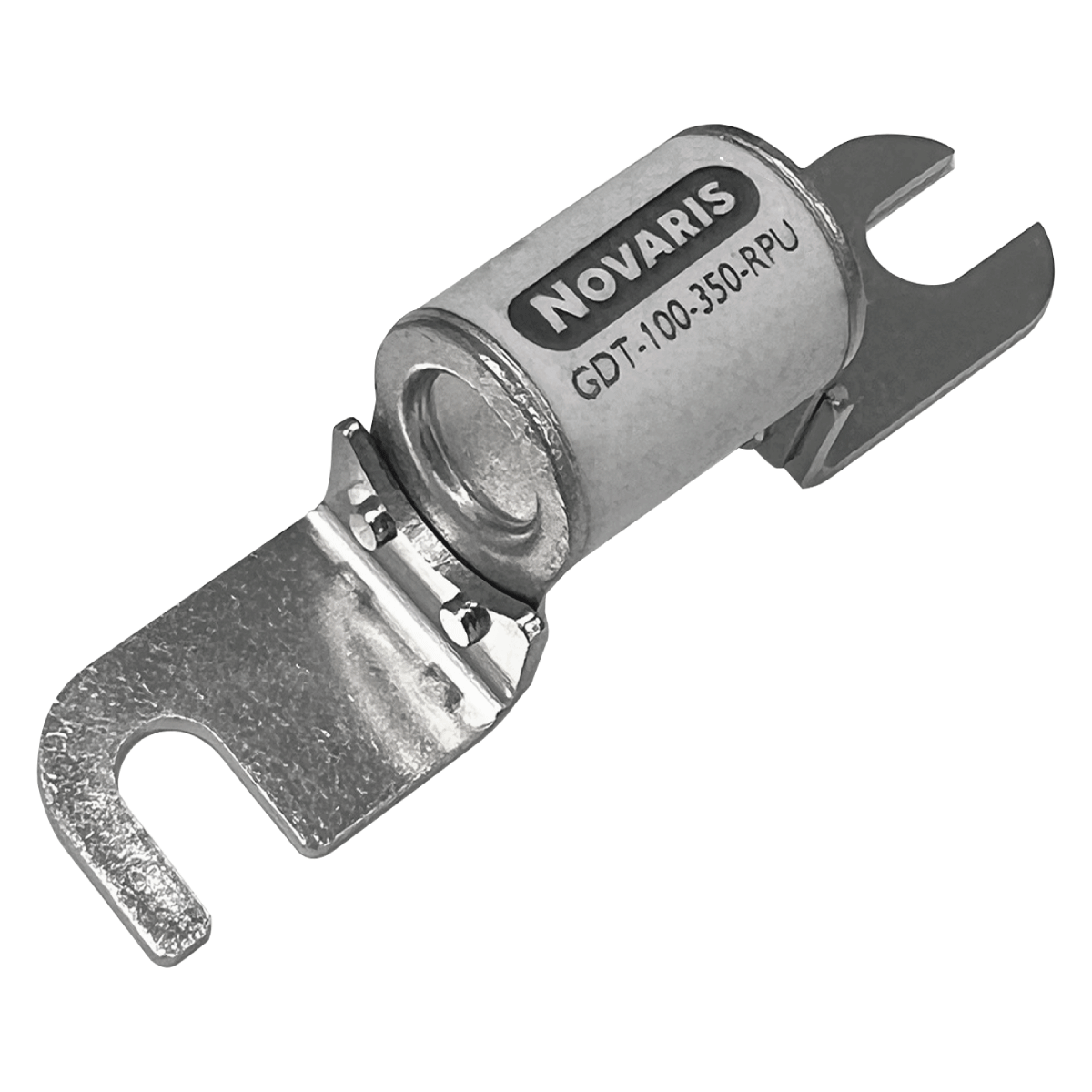

The Novaris GDT-100-350-RPU is a high energy fast acting gas discharge tube used in railway track circuit surge protectors. This components is a replacement for early technology air gap and MOV components.
The Novaris GDT-100-350-RPU is a high energy fast acting gas discharge tube used in railway track circuit surge protectors. This components is a replacement for early technology air gap and MOV components.
Application Notes Download
| Specifications | GDT-100-350-RPU | |
|---|---|---|
| DC spark over voltage | U꜀ | 350V |
| Maximum discharge current (8/20μs) | Iₘₐₓ | 150kA |
| Impulse discharge current (10/350ms) | Iᵢₘₚ | 30kA |
| Active elements | Gas discharge tube | |
| Voltage tolerance | ±20% | |
| L-PE Voltage protection level @ 1kV/μs | Uₚ | 800V |
| Dimensions | 📐 | W 72mm X H 16mm X D 25mm |
| Weight | 📦 | 25g |
| Product Datasheet | GDT-100-350-RPU | |
| Installation Guide | GDT-100-350-RPU | |
