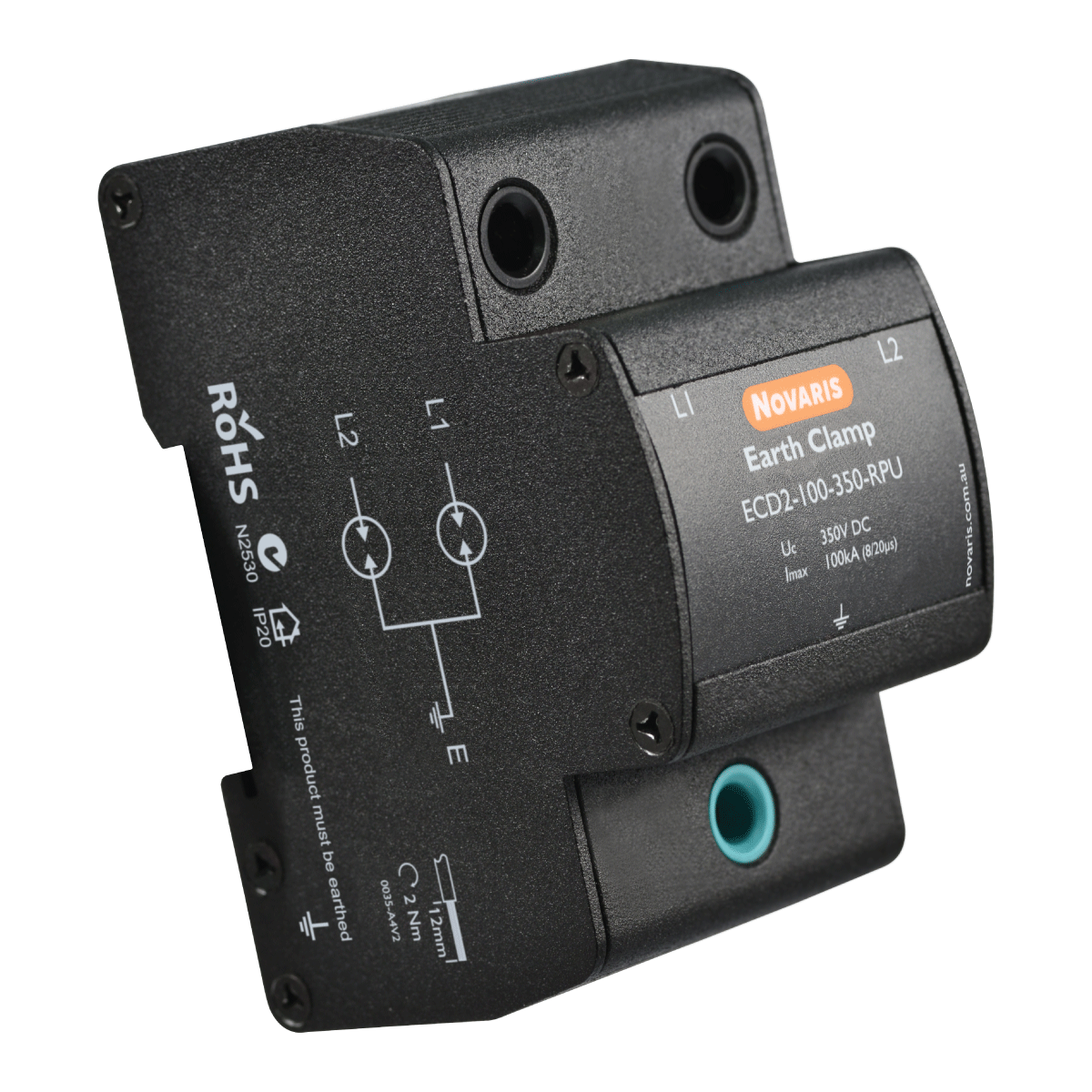

The Novaris ECD2 provides high energy surge protection for two signal lines.The ECD2 provides common mode protection from each line to earth. These are used for railways track circuits and connect directly to the conductors from the rails.
The Novaris ECD2 provides high energy surge protection for two signal lines.The ECD2 provides common mode protection from each line to earth. These are used for railways track circuits and connect directly to the conductors from the rails.
Application Notes Download
| Specifications | ECD2-100-350-RPU | |
|---|---|---|
| DC spark over voltage | U꜀ | 350V |
| Maximum discharge current (8/20μs) | Iₘₐₓ | 150kA |
| Impulse discharge current (10/350ms) | Iᵢₘₚ | 30kA |
| Active elements | IL | 2 Gas discharge tubes, L-PE |
| Voltage tolerance | ±20% | |
| L-PE Voltage protection level @ 1kV/μs | Uₚ | 800V |
| Dimensions | 📐 | W 54mm X H 95mm X D 68mm |
| Weight | 📦 | 500g |
| Product Datasheet | ECD2-100-350-RPU | |
