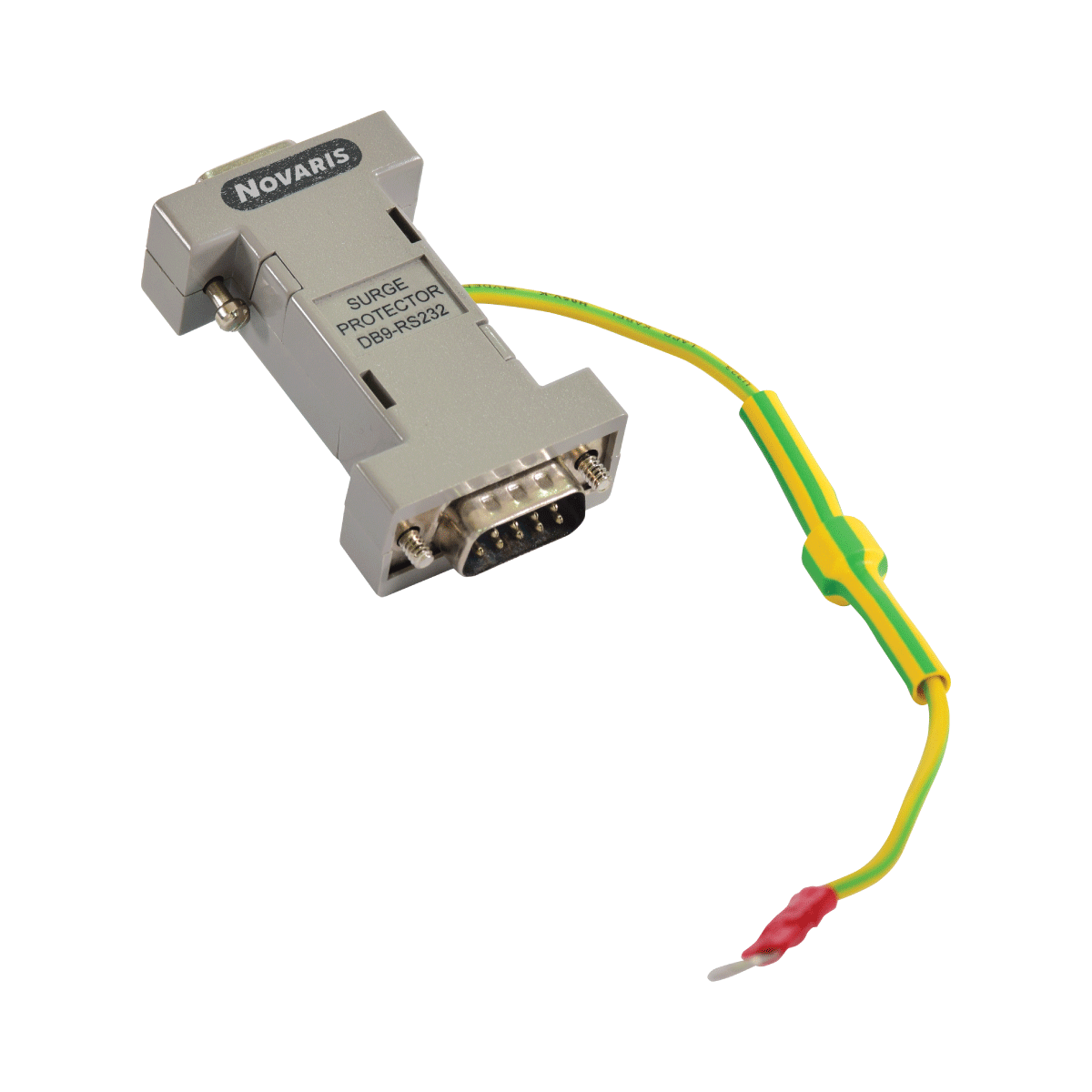

Novaris DB protectors provide protection for serial protocol systems in RS232 and RS485 applications. These units are housed in connector head-shell enclosures for insertion into existing circuits.
Novaris DB protectors provide protection for serial protocol systems in RS232 and RS485 applications. These units are housed in connector head-shell enclosures for insertion into existing circuits.
Application Notes Download
| Specifications | DB9-RS232 | DB25-RS232 | DB9-RS485 | |||
|---|---|---|---|---|---|---|
| Maximum continuous voltage (DC) | U꜀ | 36 V | 36 V | 8.2 V | ||
| Maximum continuous voltage (AC) | U꜀ | 25 V | 25 V | 5 V | ||
| Maximum discharge current (8/20μs) | Iₘₐₓ | 250 A per line | ||||
| Impulse durability | C2 8/20 μS 250A | |||||
| Maximum load current | IL | 500 mA | 500 mA | 500 mA | ||
| L-L Voltage protection level @ 1 kV/μs | Uₚ | 45V | 45V | 15V | ||
| L-PE Voltage protection level @ 1 kV/μs | Uₚ | 350V | 350V | 350V | ||
| Line resistance | 0.1 Ω | 0.1 Ω | 0.1 Ω | |||
| Dimensions | 📐 | W 34mm X H 17mm X D 53mm | W 56mm X H 17mm X D 53mm | W 34mm X H 17mm X D 53mm | ||
| Weight | 📦 | 70g | 100g | 70g | ||
| Product Datasheet | DB9-RS232 | DB25-RS232 | DB9-RS485 | |||
| Installation Guide | DB9-RS232 | DB25-RS232 | DB9-RS485 | |||
