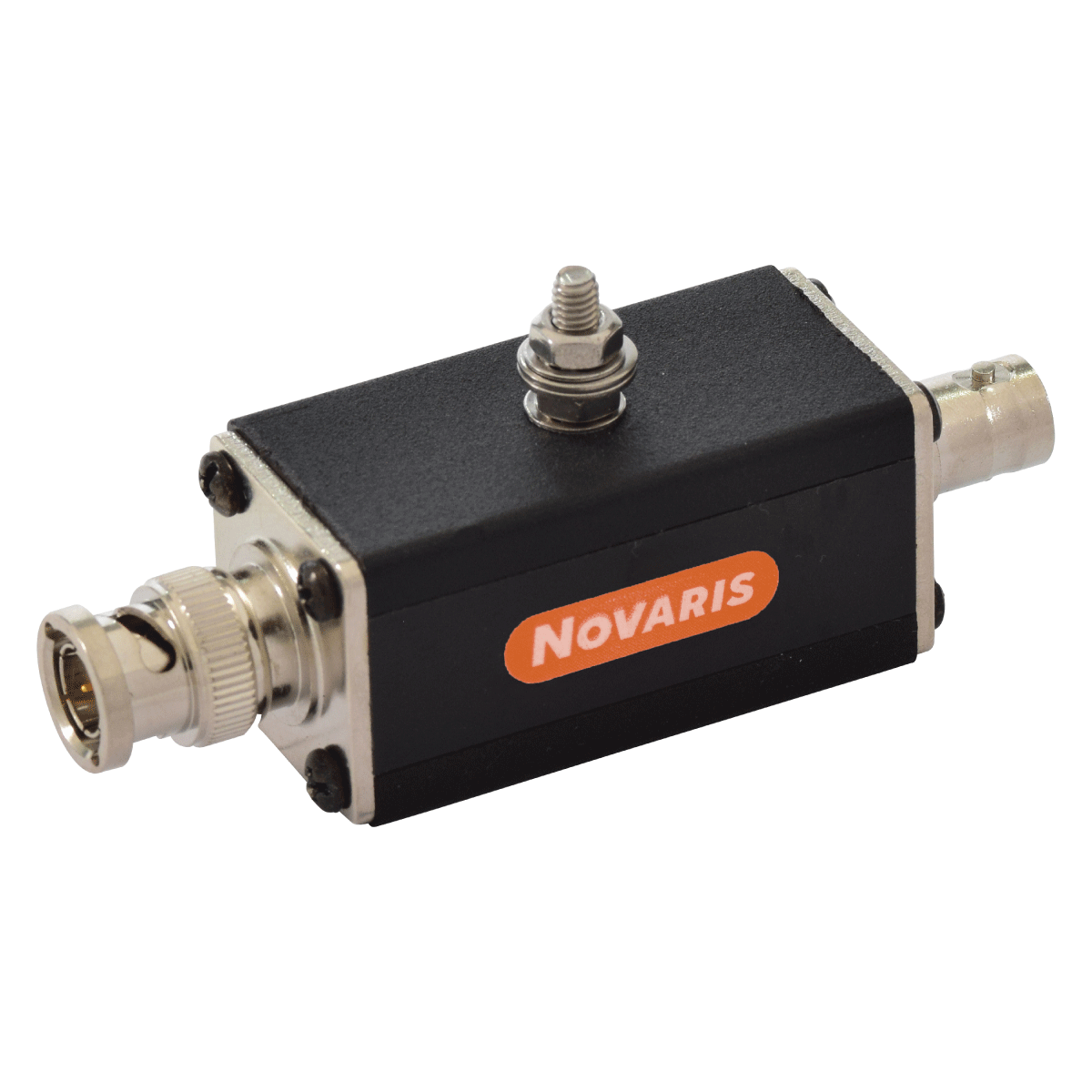

Novaris Coaxial CCTV Protectors are suited to the protection of security and CCTV systems. The 68V version has been designed for power over coax (PoC) applications.
Novaris Coaxial CCTV Protectors are suited to the protection of security and CCTV systems. The 68V version has been designed for power over coax (PoC) applications.
Application Notes Download
| Specifications | CLB-MF | CLB-FF | CLB-FM | |||
|---|---|---|---|---|---|---|
| Maximum continuous voltage (DC) | U꜀ | 68V | ||||
| Maximum discharge current (8/20μs) | Iₘₐₓ | 20kA | ||||
| Maximum impulse current (10/350μs) | Iᵢₘₚ | 2.5kA | ||||
| Impulse durability | C2 8/20μs 1kA | |||||
| Maximum load current | IL | 500mA | ||||
| Voltage protection level @ 1 kV/μs | Uₚ | 65V | ||||
| Line resistance | 1.5 Ω | |||||
| Connector type | BNC | |||||
| Connector orientation | M / F | F / F | F / M | |||
| Dimensions | 📐 | W 88mm x H 26mm x D 26mm | ||||
| Weight | 📦 | 80g | ||||
| Product Datasheet | CLB-MF | CLB-FF | CLB-FM | |||
