24 Port Network Protector

Product Line : RJ45 1RU

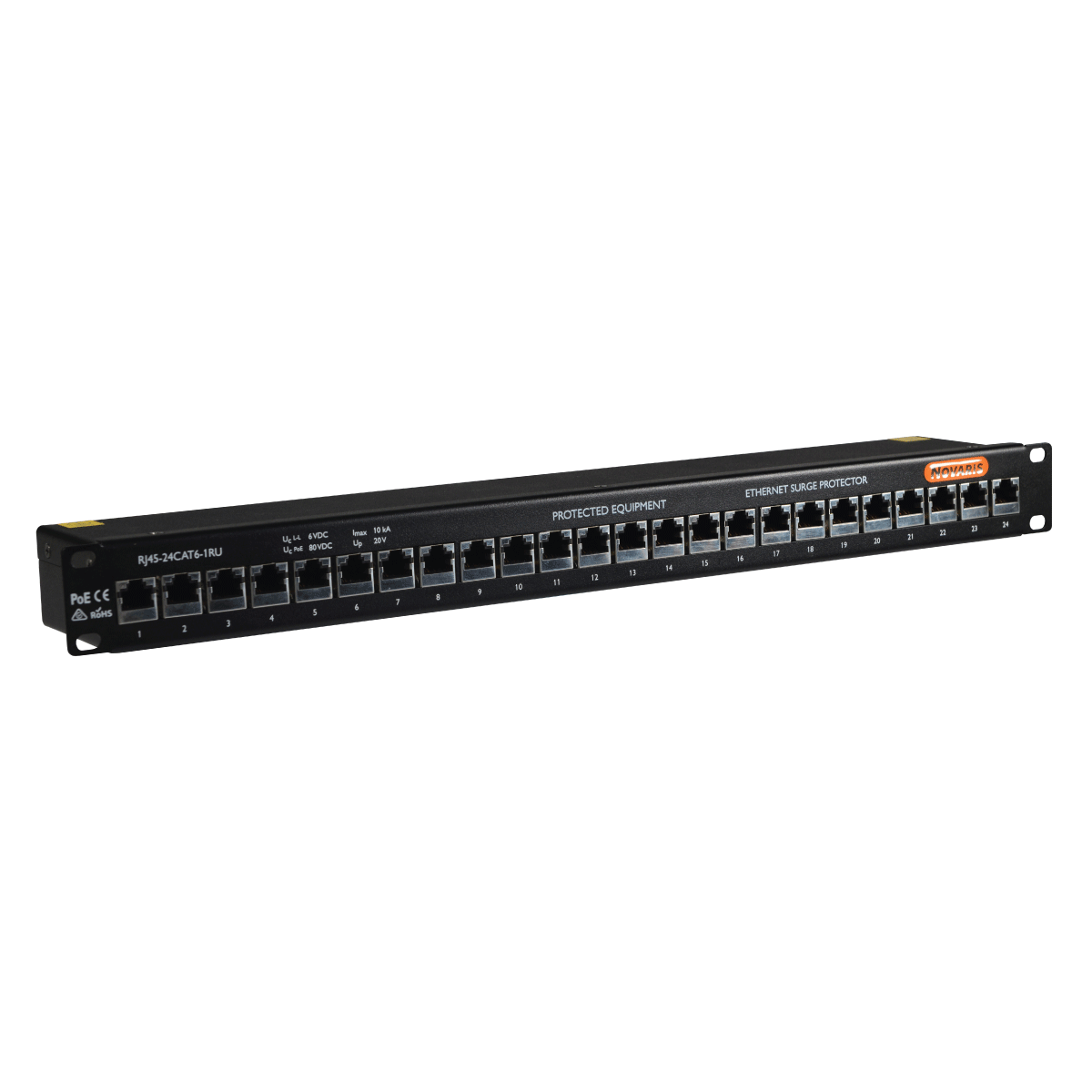

24 Port Network Protector

For rack mount 24 ports 1RU

The Novaris RJ45 network protection products are designed for twisted pair Ethernet systems. They are suited for up to Gigabit Ethernet and PoE applications to 160W.

  • Gigabit CAT6 and PoE
  • 160W + PoE
  • High protection per pair
  • 19 inch 1RU rack mount
SpecificationsRJ45-24CAT6-1RU
Maximum continuous voltage (DC)U꜀6V
Maximum continuous voltage (AC)U꜀4V
Maximum discharge current (8/20μs)Iₘₐₓ5kA per line (10kA common mode)
Maximum impulse current (10/350μs)Iᵢₘₚ1kA per line (2kA common mode)
Impulse durabilityC2 8/20μs 1.5kA – D1 10/350μs 0.5kA
Maximum load current

IL

1A
L-L Voltage protection level @ 1 kV/μsUₚ20V
L-PE Voltage protection level @ 1 kV/μsUₚ350V
Line resistance0.1 Ω
Mounting method1RU Rack mount
No of protected network circuits24
Dimensions📐W 482mm x H 44mm x D 80mm
Weight📦1.8kg
