Single Phase Surge Diverter for LPZ1/2

Power | Distribution Boards & Domestics MSB | Modular and Domestic
Product Line : NXP1

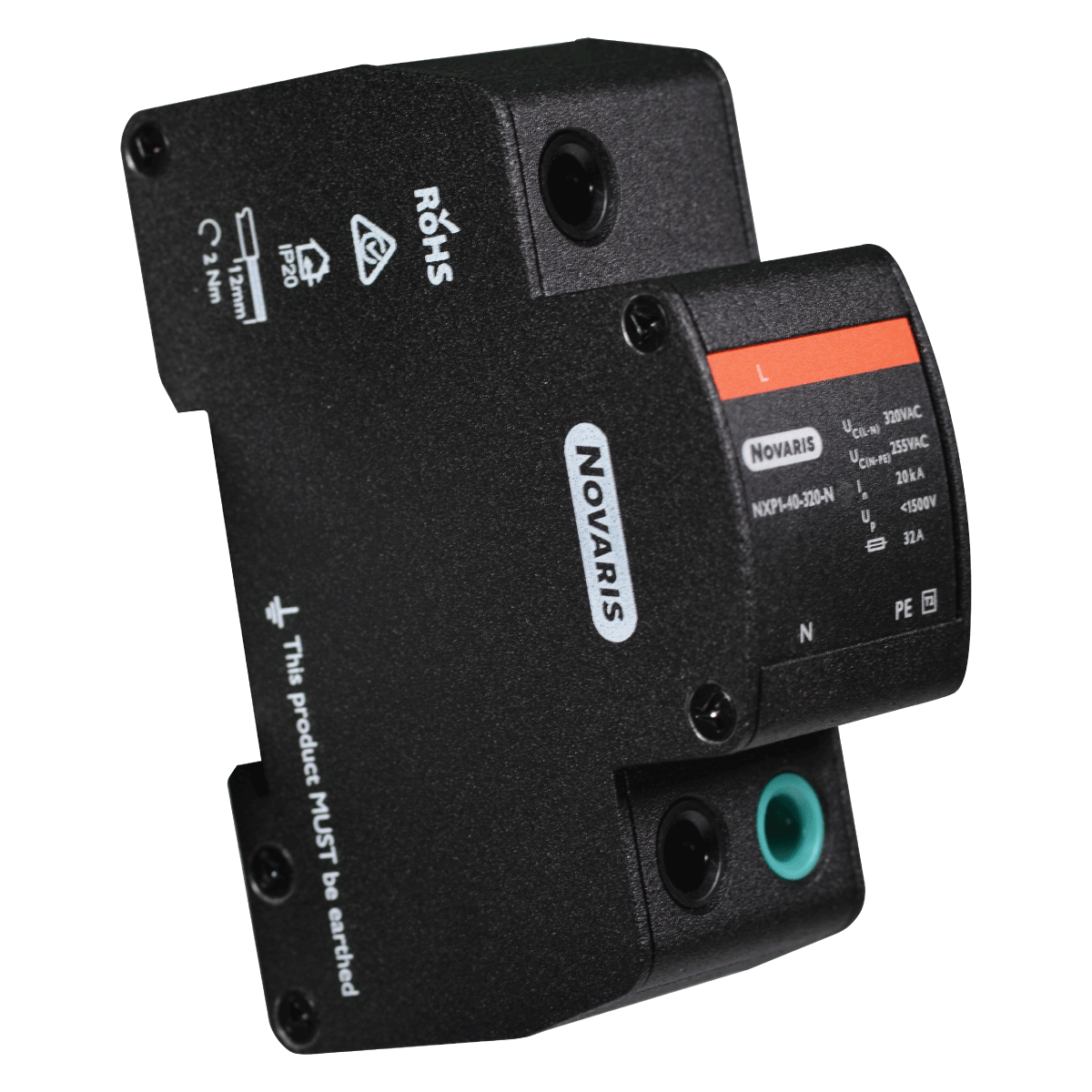

Single Phase Surge Diverter for LPZ1/2

For small industrial and domestic switchboards requiring active alarm monitoring

The Novaris NXP1 range of surge diverters provide protection for single phase electrical sub-distribution boards and point of entry protection for small industrial and domestic switchboards where cost is an important factor. The NXP is a type 2 SPD that provides all mode protection with a single LED indicating its health.

  • Type 2 SPD
  • LED power and health status indicator for each phase
  • All mode protection
  • Compact DIN compliant metallic housing

Application Notes Download

SpecificationsNXP1-40-320-N
Nominal voltageUₒ230V / 50Hz – 60Hz
Maximum continuous voltage ACU꜀320V / 50Hz – 60Hz
L-N Maximum discharge current (8/20μs)Iₘₐₓ40kA
L-N Nominal discharge current (15 x 8/20μs)Iₙ20kA
L-N Voltage protection level @ 3kA (8/20μs)Uₚ<850V
N-PE Nominal discharge current (15 x 8/20μs)In50kA
N-PE Voltage protection level @ 1kV/μsUₚ<1000V
Dimensions📐W 36mm x H 95mm x D 70mm
Weight📦190g
Product DatasheetPDFNXP1-40-320-N
Installation ManualPDFNXP1-40-320-N
Application Note
