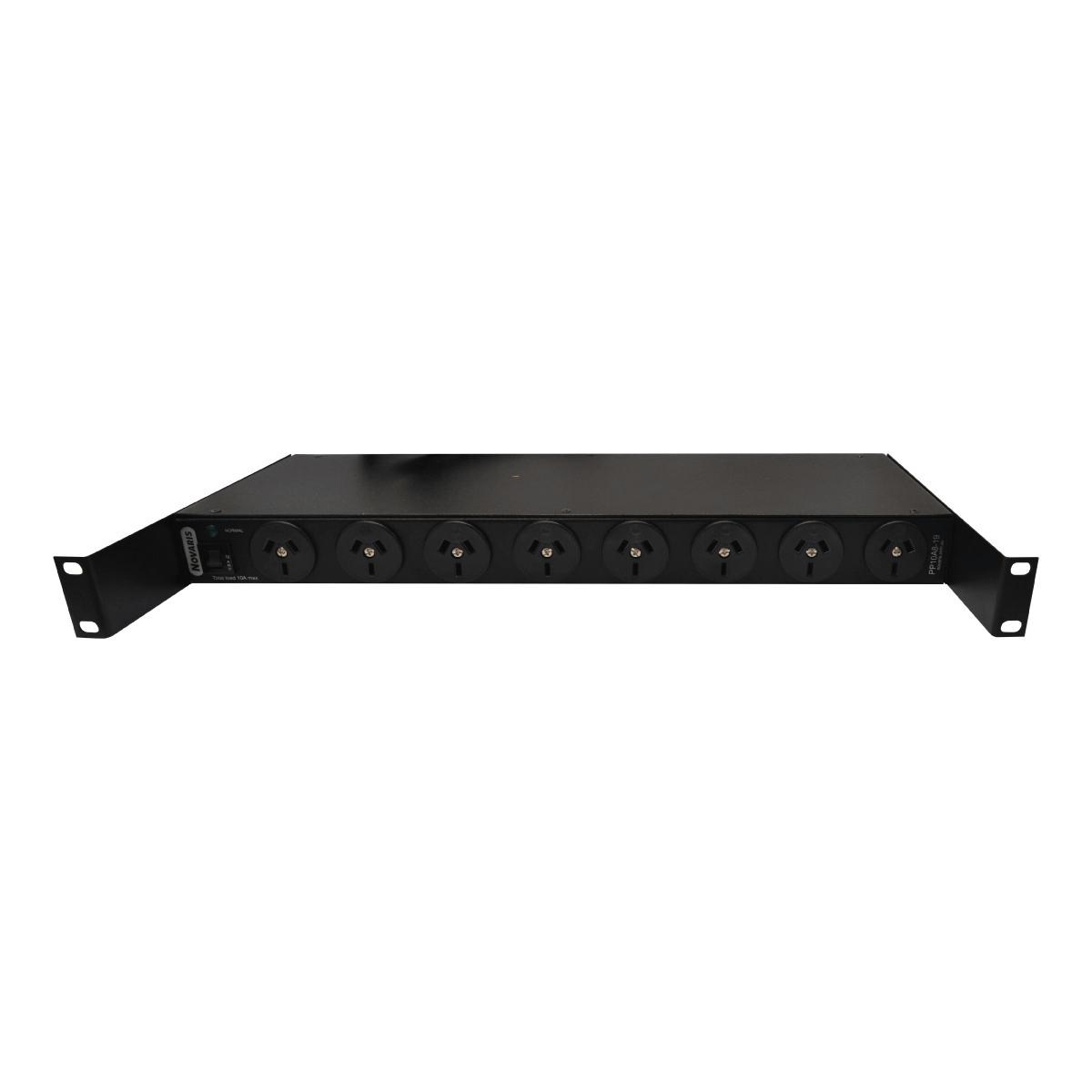

PP10 1RU Surge Filter for LPZ1/2/3

For rack mount applications with 8 AS/NZ power outlets

Novaris Plug-in 1RU Surge Filters plug into a standard mains AS/NZ GPO outlet socket using the inbuilt rear mains lead. It provides surge protection with filtering for sensitive or critical electronic rack mounted equipment. The 1RU AS/NZ filter provides 8 AS/NZS 3112 outlets in a 1RU height 19inch euro rack format unit all protected by an inbuilt 10A re-settable MCB on the front panel.

  • Type 2/3 ratings
  • 1RU 19-inch format, with 8 front outlets
  • Common and transverse mode filtering and protection
  • LED power and health status indications
  • Three stage protection configured for sensitive loads

Application Notes Download

SpecificationsPP10A8-50 1RU
Nominal voltageUₒ230V / 50Hz – 60Hz
Maximum continuous voltage ACU꜀275V / 50Hz – 60Hz
Maximum load current

IL

10A
L-N Maximum discharge current (8/20μs)Iₘₐₓ50kA
L-N Nominal discharge current (15 x 8/20μs)Iₙ20kA
L-N Voltage protection level @ 3kA (8/20μs)Uₚ<600V
N-PE Nominal discharge current (15 x 8/20μs)Iₙ20kA
N-PE Voltage protection level @ 1kV/μsUₚ<800V
Number of outlets🔌8
Dimensions📐W 484mm x H 44mm x D 220mm
Weight📦2.5kg
