High Voltage Surge Diverters

Product Line : SDH

High Voltage Surge Diverters

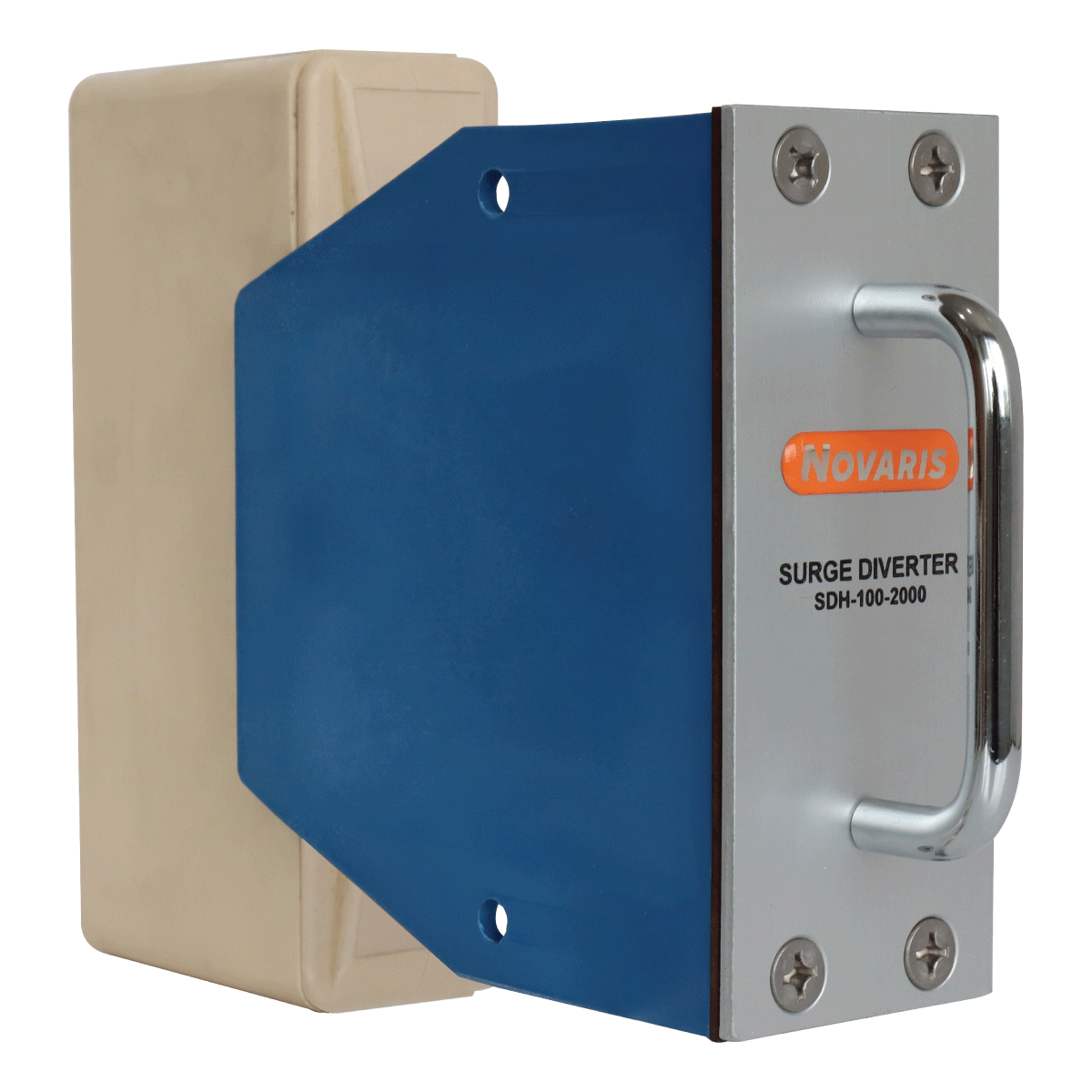

A high energy pluggable SPD for the protection of airport runway lighting circuits

Novaris SDH High Voltage Surge Diverters have been engineered for system voltages up to 2000VRMS. Typical applications include primary loop aviation runway lighting, mining, industrial and railway industries.

  • Type 1/2 ratings
  • High surge energy ratings
  • RSL63 type base
  • Various mounting base options
  • Replaceable modules
  • Optional alarm (-A)
SpecificationsSDH-100-550SDH-200-1000SDH-100-1500SDH-100-2000
Maximum continuous voltage ACU꜀550V1000V1500V2000V
L-N Maximum discharge current (8/20μs)Iₘₐₓ100kA200kA100kA100kA
L-N Impulse current (10/350μs)Iᵢₘₚ12.5kA25kA12.5kA12.5kA
L-N Nominal discharge current (15 x 8/20μs)Iₙ40kA80kA40kA40kA
L-N Voltage protection level @ 3kA (8/20μs)Uₚ<1600V<2400V<3800V<4800V
Dimensions📐W 57mm x H 215mm x D 162mm
Weight📦2kg2kg2kg2kg
Product DatasheetPDFSDH-100-550SDH-200-1000SDH-100-1500SDH-100-2000
Base OptionsRSL63HRSL63PHRSL63P
ConnectionFrontFront / Rear StudRear Stud
Terminal capacity

25mm2

25mm2 / M8

M8
Dimensions📐W 41mm x H 162mm x D 79mm
Product DatasheetPDFRSL63HRSL63PHRSL63P
