European Plug-In Surge Filters for LPZ1/2/3

Power | Appliance Protection | Plug in Filters (Europe)
Product Line : PP10E

European Plug-In Surge Filters for LPZ1/2/3

For the protection of final circuit plug in appliances with European power outlets

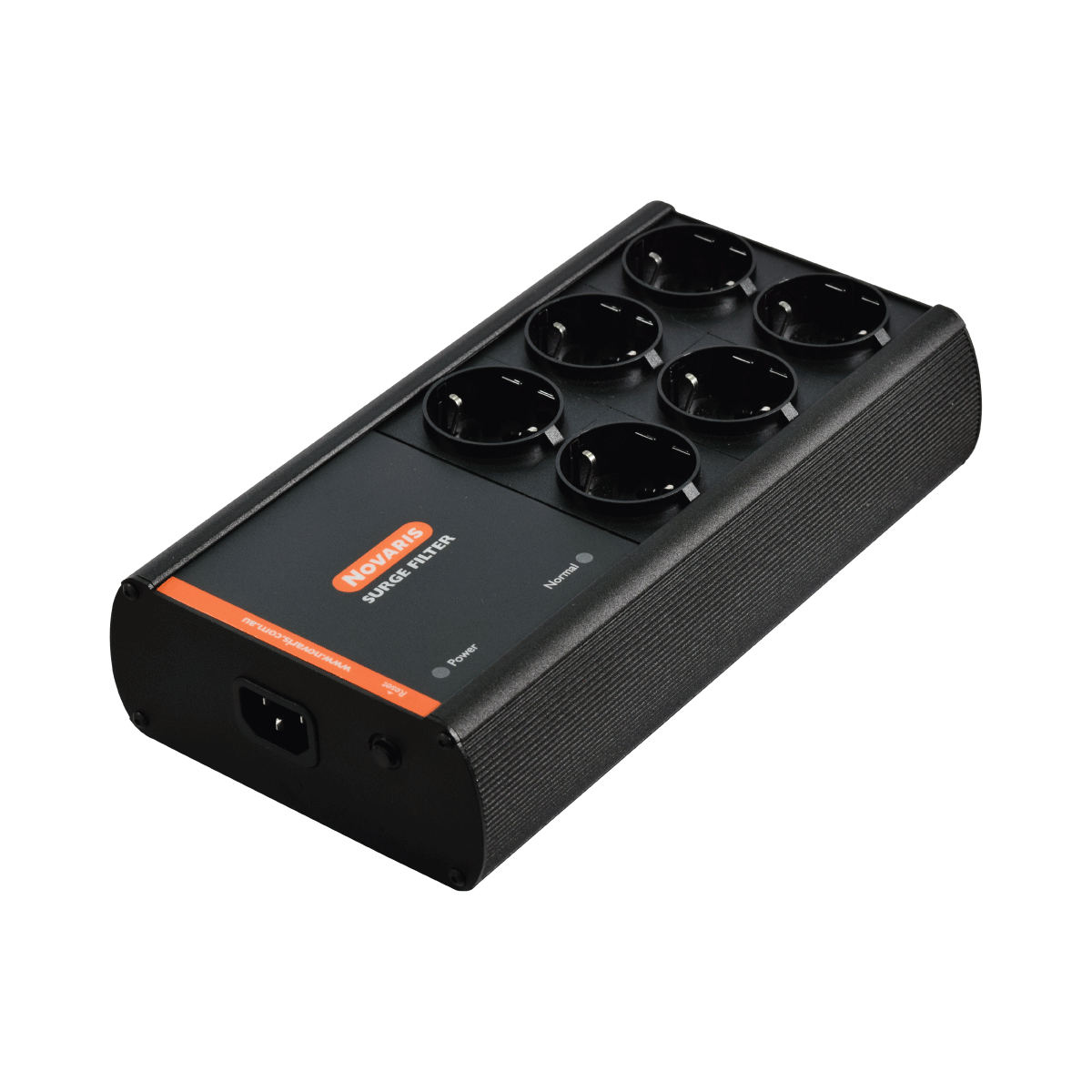

Novaris Plug-in Surge Filters plug into a wall outlet socket using an IEC lead. They provide excellent surge protection with additional filtering for sensitive or critical electronic equipment. This filter range provides multiple European outlets all protected by an inbuilt 10A re-settable MCB.

  • Type 1/2/3 ratings
  • Common and transverse mode filtering and protection
  • LED power and health status indications
  • Three stage protection configured for sensitive loads
  • Robust and compact metallic enclosure
  • Standard IEC power connector input

Application Notes Download

SpecificationsPP10E2-50PP10E4-50PP10E6-50PP10E8-50
Nominal voltageUₒ230V / 50Hz – 60Hz
Maximum continuous voltage ACU꜀275V / 50Hz – 60Hz
Maximum load current

IL

10A10A10A10A
L-N Maximum discharge current (8/20μs)Iₘₐₓ50kA50kA50kA50kA
L-N Impulse current (10/350μs)Iᵢₘₚ6.25kA6.25kA6.25kA6.25kA
L-N Nominal discharge current (15 x 8/20μs)Iₙ20kA20kA20kA20kA
L-N Voltage protection level @ 3kA (8/20μs)Uₚ<700V<700V<700V<700V
N-PE Nominal discharge current (15 x 8/20μs)Iₙ20kA20kA20kA20kA
N-PE Voltage protection level @ 1kV/μsUₚ<800V<800V<800V<800V
Number of outlets🔌2468
Dimensions📐W 155mm x H 60mm x D 137mmW 205mm x H 60mm x D 137mmW 255mm x H 60mm x D 137mmW 305mm x H 60mm x D 137mm
Weight📦1.3kg1.5kg1.8kg2kg
Product DatasheetPDFPP10E2-50PP10E4-50PP10E6-50PP10E8-50
