AS/NZ Plug-In Surge Filters for LPZ1/2/3

Power | Appliance Protection | Plug in Filters (Australian)
Product Line : PP10A

AS/NZ Plug-In Surge Filters for LPZ1/2/3

For the protection of final circuit plug in appliances with AS/NZ power outlets

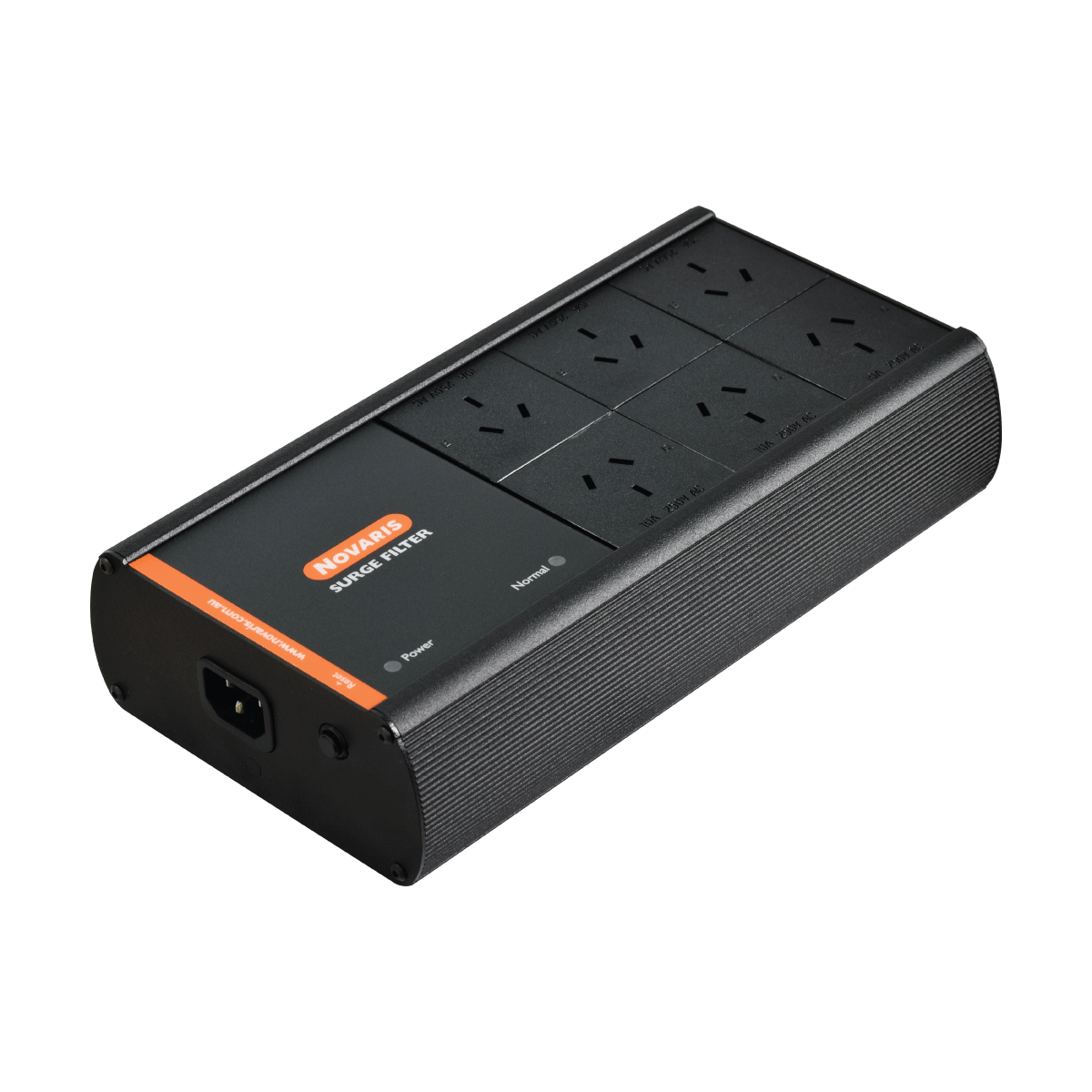

Novaris Plug-in Surge Filters plug into a standard mains GPO wall outlet socket using an IEC lead. They provide excellent surge protection with additional filtering for sensitive or critical electronic equipment. The AS/NZ filter range provides multiple AS/NZS 3112 outlets all protected by an inbuilt 10A re-settable MCB.

  • Type 1/2/3 ratings
  • Common and transverse mode filtering and protection
  • LED power and health status indications
  • Three stage protection configured for sensitive loads
  • Robust and compact metallic enclosure
  • Standard IEC power connector

Application Notes Download

SpecificationsPP10A2-50PP10A4-50PP10A6-50PP10A8-50
Nominal voltageUₒ230V / 50Hz – 60Hz
Maximum continuous voltage ACU꜀275V / 50Hz – 60Hz
Maximum load current

IL

10A10A10A10A
L-N Maximum discharge current (8/20μs)Iₘₐₓ50kA50kA50kA50kA
L-N Impulse current (10/350μs)Iᵢₘₚ6.25kA6.25kA6.25kA6.25kA
L-N Nominal discharge current (15 x 8/20μs)Iₙ20kA20kA20kA20kA
L-N Voltage protection level @ 3kA (8/20μs)Uₚ<700V<700V<700V<700V
N-PE Nominal discharge current (15 x 8/20μs)Iₙ20kA20kA20kA20kA
N-PE Voltage protection level @ 1kV/μsUₚ<800V<800V<800V<800V
Number of outlets🔌2468
Dimensions📐W 155mm x H 60mm x D 137mmW 205mm x H 60mm x D 137mmW 255mm x H 60mm x D 137mmW 305mm x H 60mm x D 137mm
Weight📦1.3kg1.5kg1.8kg2kg
Product DatasheetPDFPP10A2-50PP10A4-50PP10A6-50PP10A8-50
Application Note
