Showing all 10 results

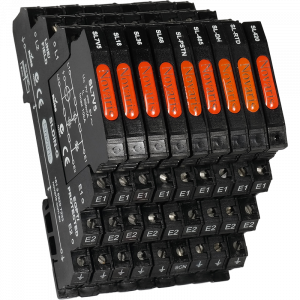

SL – Slimline Signal Line Protectors

Description

Novaris SL range of plug-in signal line protectors provide surge protection for most twisted pair signalling schemes. Ideal for the protection of PLCs, instrumentation, fire and security systems, telecommunications and telemetry systems, railway signalling, SCADA and other industrial monitoring and control equipment

Product Codes: SL7v5-G, SL18-G, SL36-G, SL68-G, SL-PSTN-G, SL485-EC90, SL-DH-G, SL-RTD-G, SL-420-G, SL7v5-EC90, SL18-EC90, SL36-EC-90, SL68-EC90, SL-PSTN-EC90, SL-DH-EC90, SL-RTD-EC90, SL-420-EC90



SL Datasheet SL & SSP6A Installation Guide SL CAD Blocks

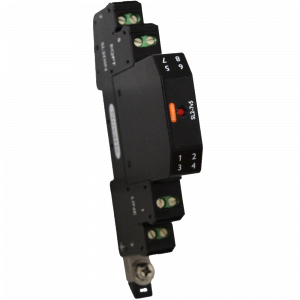

SL2 / SLH2 – Slimline Surge Protector

Description

The Novaris SL2 and SLH2 range provides 20kA high energy surge protection for balanced pair signaling circuits, used in a wide range of industrial monitoring and control equipment. Applications include SCADA, PLC, fire and security systems, telecommunications and railway signaling. The SL2 is designed for protecting communication circuits with a 3dB of 60Mhz and the SLH2 is designed for instrumentation power circuits requiring up to 2.5A of current..

The SL2 and SLH2 range integrates a fault indicator and external alarm connection for surge protection monitoring. They are available with a -EC90 option to isolate the earth connection for protection of field equipment. The protection and alarm circuit is contained in a replaceable cartridge to minimise downtime.

Product Codes: SL2-7v5, SL2-18, SL2-36, SL2-68, SL2-PSTN, SL2-485-EC90, SL2-7v5-EC90, SL2-18-EC90, SL2-36-EC90, SL2-68-EC90, SL2-PSTN-EC90, SLH2-36, SLH2-68, SLH2-110, SLH2-230, SLH2-350

SL2 Datasheets SLH2 Datasheets

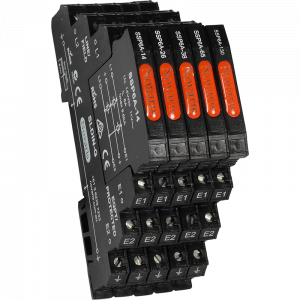

SSP6A – Slimline Series Surge Protectors

Description

The SSP6A series surge protectors complement the SL range for applications of load currents up to 6A. Typical applications may include power supplies, instrumentation and other low voltage requirements up to 6A.
With two different base options the SSP6A protectors offer either direct earthing via DIN rail, for the most effective, low impedance earth connection (-G base) or a connection via GDT to the DIN rail, offering isolation under normal conditions and equipotential bonding during a surge (-EC90 base).

The plug-in design provides simple and rapid replacement and testing – no rewiring needed. This also provides a convenient method of field equipment isolation if required.

Product Codes: SSP6A-14-G, SSP6A-26-G, SSP6A-38-G, SSP6A-65-G, SSP6A-130-G, SSP6A-14-EC90, SSP6A-26-EC90, SSP6A-38-EC90, SSP6A-65–EC90, SSP6A-130-EC90

SSP6A Datasheet SL & SSP6A Installation Guide SSP6A CAD Blocks

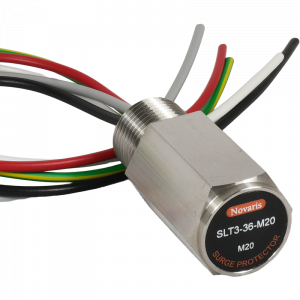

SLT – Threaded Signal Line Protectors

Description

Novaris threaded instrument protectors provide surge protection for instrumentation and are designed to be installed directly at the field equipment providing protection against induced surges and transients. They are suitable for two, three and four wire instruments. SLT models are available for signalling systems up to 200V.

The multistage design provides a high energy gas discharge tube (GDT) as primary protection for common mode disturbances, commonly associated with lightning strikes and power system earth faults and a secondary metal-oxide varistor clamping stage across the signal lines. This combination provides very robust surge protection with high transient suppression and low let-through voltages. In addition protection is provided for cable screens which may be open circuit at the instrument.

Product Codes: SLT1-7v5, SLT1-18, SLT1-36, SLT1-68, SLT1-200, SLT3-7v5, SLT3-18, SLT3-36, SLT3-68, SLT3-200, SLT4-7v5, SLT4-18, SLT4-36, SLT4-68, SLT4-200, SLT4-36-275

SLT Datasheet SLT Installation Guide Protocol List - Selection Guide

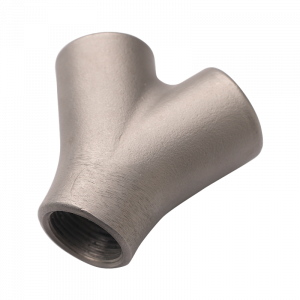

SLT-Y – Y Adapter for SLTx

Description

The SLT-Y offers a solution when a field instrument has no free cable entry  to accommodate the SLT threaded instrument protector. The Novaris Y-piece adapter accommodates the SLT threaded instrument protector and cable gland. The SLT-Y is available in the same thread types as the threaded instrument protectors.

The IS-SLT-Y-M20 is an IEC Ex and ATEX EX d certified version of the Y-Adapter, and so may be installed in Ex d rated instruments without loss of integrity.

Product Codes: SLT-Y-M20, SLT-Y-N12

SLT-Y Datasheet SLT-Y Installation Guide

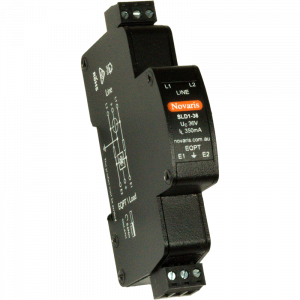

SLD – High Surge Current Signal Line Protector

Description

SLD Signal Line Protectors are designed to protect the most sensitive electronic equipment in lightning intense environments. So they are ideal for the protection of PLC’s, fire and security systems, railway signalling and SCADA equipment.

Models feature multistage transient protection which delivers a greater level of protection through a staged approach. The primary stage absorbs the majority of the surge energy. The remaining stages provide accurate clamping and a degree of redundancy.

Product Codes: SLD1-7v5, SLD1-18, SLD1-36, SLD1-68, SLD1-485, SLD1-DH, SLD1-PSTN, SLD2-7v5, SLD2-18, SLD2-36, SLD2-68, SLD2-485, SLD2-DH, SLD2-PSTN, SLD4-7v5, SLD4-18, SLD4-36, SLD4-68, SLD4-485, SLD4-DH, SLD4-PSTN



SLD Datasheet SLD Installation Guide

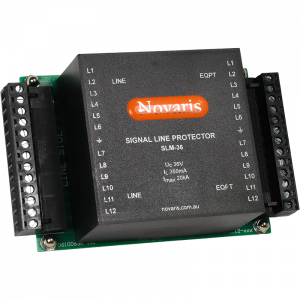

SLM – Multiline Protectors

Description

Novaris SLM offers protection for up to 12 signal lines. Each of the 12 lines have the protection referenced to ground making it an excellent choice for parallel signaling busses. Typical applications include process control, telemetry, PLC, and irrigation systems.

Product Codes: SLM-7v5, SLM-18, SLM-36, SLM-68, SLM-200

SLM Datasheet SLM Instrallation Guide

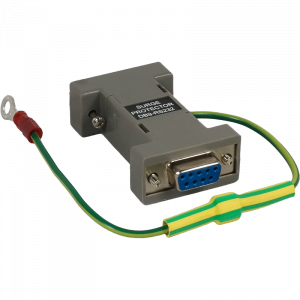

DB – RS-Serial Port Protectors

Description

Novaris DB Protectors provide protection for serial protocol systems in RS232 and RS485 applications. These units are housed in a headshell enclosure.

The DB Protectors have a 90V earth isolation to prevent ground loops.

Product Codes: DB9-RS232, DB25-RS232, DB9-RS485, DB25-RS485



DB Datasheet DB Installation Guide

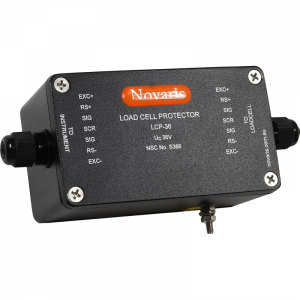

LCP – Load Cell Protector

Description

The Novaris LCP provides protection for both 4-wire and 6-wire loadcells as well as the measuring instrument. The LCP is contained within an IP65 enclosure, or alternatively as a PCB only. Installation of the LCP is certified and does not affect weighbridge calibration.

Products Codes: LCP-18, LCP-36, LCP-18-PCB, LCP-36-PCB

LCP Datasheet LCP Installation Guide

RJ45-1CB – C-Bus™ Protection Device

Description

Novaris C-Bus™ RJ45 surge protection products are specifically designed for the protection of C-Bus™ RJ45 communications wiring.

The Novaris C-Bus™ RJ45 network protector is designed with primary protection elements of the C-Bus™ network pairs and secondary protection elements to provide protection for the Remote Override pairs.

The Novaris C-Bus™ protector contains integrated 230V isolation to prevent equipment damage during power to earth faults but also provide efficient earth bonding during a surge event.

Product Codes: RJ45-1CB

RJ45-1CB Datasheet
