Surge Diverters

Showing all 4 results

SD – MULTIMOV Surge Diverters

Description

Use SD – MULTIMOV high energy surge diverters for single phase point of entry protection at main switchboards. Models are available for all wiring systems worldwide.

SD MULTIMOV surge diverters feature a parallel redundant arrangement of high energy metal oxide varistors (MOVs), thus promoting long life and exceptional surge handling capacity. In the event of a varistor failure the remaining segments continue to provide protection.

A digital display confirms the device rating by displaying the percentage active of the redundant segments. The display indicates segment status and thermal overload. A failsafe alarm contact allows for remote monitoring.

Product Codes: SD1-100-275, SD1-150-275, SD1-200-275, SD3-100-275, SD3-150-275, SD3-200-275-N, SD1-100-275-N, SD1-150-275-N, SD1-200-275-N, SD3-100-275-N, SD3-150-275-N, SD3-200-275-N

SD1-100-275 Datasheet SD1-100-275-N Datasheet SD1-150-275 Datasheet SD1-150-275-N Datasheet SD1-200-275 Datasheet SD1-200-275-N Datasheet SD3-100-275 Datasheet SD3-100-275-N Datasheet SD3-150-275 Datasheet SD3-150-275-N Datasheet SD3-200-275 Datasheet SD3-200-275-N Datasheet SD1 Installation Guide SD3 Installation Guide SD1 & SD3 CAD Block

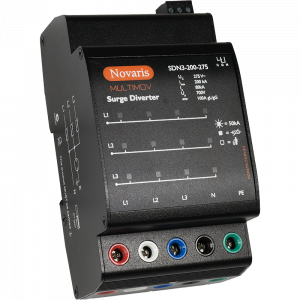

SDN – All Mode Surge Diverters

Description

Use MULTIMOV all mode high energy surge diverters for point of entry protection at main switchboards, especially where N-PE protection is required.

MULTIMOV surge diverters feature a parallel redundant arrangement of high energy metal oxide varistors (MOVs), thus promoting long life and exceptional surge handling capacity. In the event of a varistor failure the remaining segments continue to provide protection.

The LED display indicates segment status and indicates normal operation when all LEDs are brightly lit.

Product Codes: SDN3-100-275, SDN3-150-275, SDN3-200-275, SDN3-100-475-NE150, SDN3-200-475-NE150

SDN3-100-275 Datasheet SDN3-100-475-NE150 Datasheet SDN3-150-275 Datasheet SDN3-200-275 Datasheet SDN3-200-475-NE150 Datasheet SDN3 Installation Guide SDN3 CAD Blocks

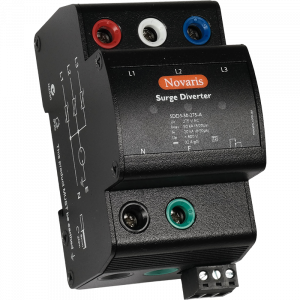

SDD – Surge Diverters DIN

Description

Novaris SDD DINsafe Surge Diverters offer powerful performance at domestic MSB and industrial DBs. The SDD diverters are housed in DIN compliant, failsafe metal enclosures and are fully compliant to AS/NZS1768-2007 and to AS/NZ3000 wiring rules.

Product Codes: SDD1-20-275, SDD3-20-275, SDD1-50-275, SDD3-50-275, SDD1-100-275, SDD3-100-275

SDD1-20-275 Datasheet SDD1-50-275 Datasheet SDD1-50-275-A Datasheet SDD1-100-275 Datasheet SDD1-100-275-A Datasheet SDD3-20-275 Datasheet SDD3-50-275 Datasheet SDD3-50-275-A Datasheet SDD3-100-275 Datasheet SDD3-100-275-A Datasheet SDD1 Installation Guide SDD3 Installation Guide SDD1 & SDD3 CAD Blocks
